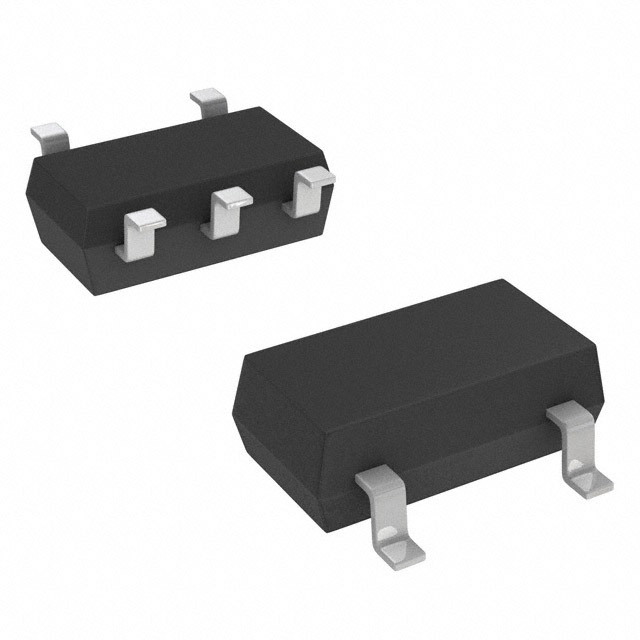

UMG8NTR The ROHM Semiconductor UMG8NTR is a dual NPN pre-biased transistor array designed for surface mount applications. It features a 50V collector-emitter voltage and 100mA collector current.
Mfr Part #:

UMG8NTR

Available from 2 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM Semiconductor UMG8NTR is a dual NPN pre-biased transistor array designed for surface mount applications. It features a 50V collector-emitter voltage and 100mA collector current.
✓ Total Stock: 15,000 pcs
$ Price Range: $0.99

UMG8NTR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UMG8NTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Frequency
Lead Style
Mounting Type
Power
Resistor
SVHC Present
Supplier Device Package
Tape & Reel
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

UMG8NTR Description

Short technical summary and product information.

The UMG8NTR from ROHM Semiconductor is a pre-biased bipolar transistor array featuring two NPN transistors. This component is designed for surface mount applications and comes in a compact UMT5 package. It offers a maximum collector-emitter voltage of 50V and a maximum collector current of 100mA, with a power dissipation rating of 150mW.



The transistor array includes integrated resistors, with a nominal input resistance of 47kΩ. It exhibits a minimum DC current gain (hFE) of 80 at 10mA and 5V, and a Vce saturation of 300mV maximum at 250µA and 5mA. The transition frequency is rated at 250MHz.



This device is suitable for various electronic circuits requiring integrated transistor pairs with built-in biasing. Its surface mount package facilitates automated assembly processes, making it a convenient choice for compact designs.

UMG8NTR Quick Information

Product Type: Pre-biased Transistor Array
Series: UMG8NTR
Canonical Name: UMG8NTR Dual NPN Pre-biased Transistor
Subcategory: Pre-biased

UMG8NTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

UMG8NTR Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

UMG8NTR Features

  • Dual NPN pre-biased transistor array.
  • 50V collector-emitter voltage rating.
  • 100mA maximum collector current.
  • 150mW maximum power dissipation.
  • Surface mount UMT5 package.

UMG8NTR Applications

  • General purpose switching and amplification.
  • Suitable for logic level conversion.
  • Ideal for high-density PCB designs.
  • Reduces component count in interface circuits.
  • Used in portable electronic devices.

UMG8NTR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage?

50V.

What is the maximum collector current?

100mA.

What is the package type?

UMT5 (also 5-TSSOP, SC-70-5, SOT-353).

What is the transition frequency?

250MHz.

What is the minimum DC current gain?

80 at 10mA, 5V.

What is the maximum power dissipation?

150mW.

What is the input resistor value?

47kΩ.
