| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Power (Watts) | |
| Relative Humidity | |
| Ripple | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

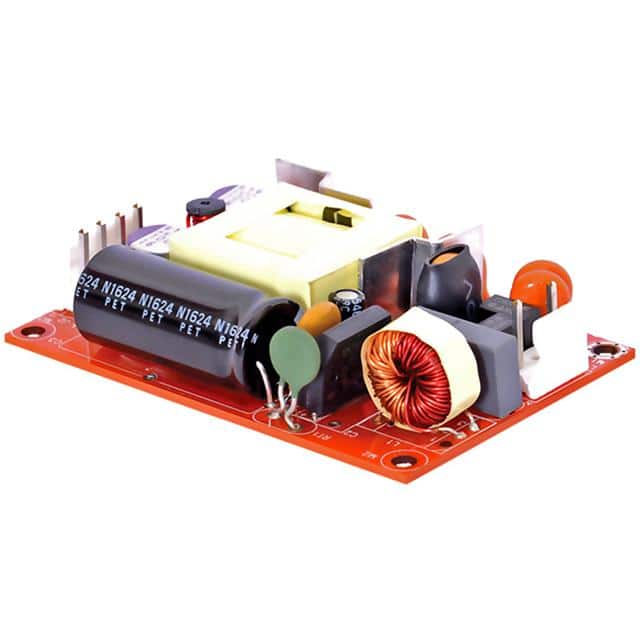

The EOS Power ULP40-1330 is a 40-watt AC/DC converter designed for industrial applications. It operates with a universal input voltage range of 85-264 VAC and provides a single output of 30V at up to 1.33A.
This converter boasts an efficiency of 85% typical and features convection cooling. Key electrical specifications include line regulation of +/-0.5%, load regulation of +/-1%, and a hold-up time of 60 ms at 230VAC. Protection features include over-current, over-voltage, and short-circuit protection in hiccup mode.
The ULP40-1330 has a compact form factor measuring 3.00 x 2.00 x 0.75 inches (76.2 x 50.8 x 19.1mm). It is designed for chassis mounting and operates within a wide temperature range of -40°C to 70°C.
Compliance includes IEC/EN/UL62368-1 and approvals from CB, CE, cUL, NEMKO, and UL. It is suitable for ITE (Commercial) applications.
The ULP40-1330 has an output voltage of 30V.
The maximum output current for the ULP40-1330 is 1.33A.
The ULP40-1330 has a power rating of 40W.
The typical efficiency of the ULP40-1330 is 85%.
The ULP40-1330 operates between -40°C and 70°C.
The dimensions of the ULP40-1330 are 76.2mm x 50.8mm x 19.1mm (3.00" x 2.00" x 0.75").
