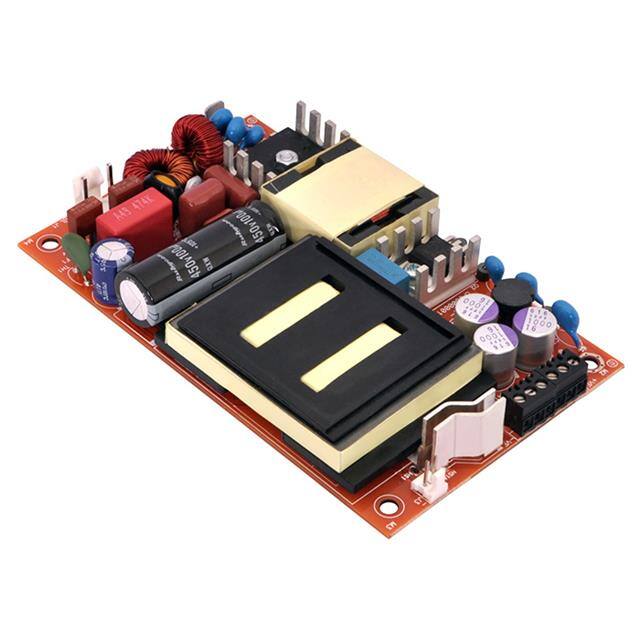

The EOS Power ULP275-0012 is a 160W AC/DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 80-264 VAC and provides a stable 12V output.
This open frame converter features a chassis mount design for easy integration into systems. It offers key features such as adjustable output, power factor correction (PFC), and a standby output. The efficiency is rated at 88% typical.
With dimensions of 5.00" L x 3.50" W x 0.75" H, it is suitable for space-constrained designs. The operating temperature range is -40°C to 70°C with derating, and it has an isolation voltage of 3kV.
Key electrical specifications include a maximum output current of 13.33A, line regulation of +/-0.5%, and load regulation of +/-1%. It also includes over-current, over-voltage, and short-circuit protection.
The output voltage is 12V DC.
The maximum output power is 160W with convection cooling and 275W with forced air cooling.
The input voltage range is 80-264 VAC or 390 VDC.
The operating temperature range is -40°C to 70°C with derating.
It requires forced air cooling for 275W output and can operate with natural convection cooling for up to 160W.
The dimensions are 127.0mm x 88.9mm x 19.1mm.
It has approvals from CB, CE, cUL, NEMKO, and UL.
