| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Relative Humidity | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

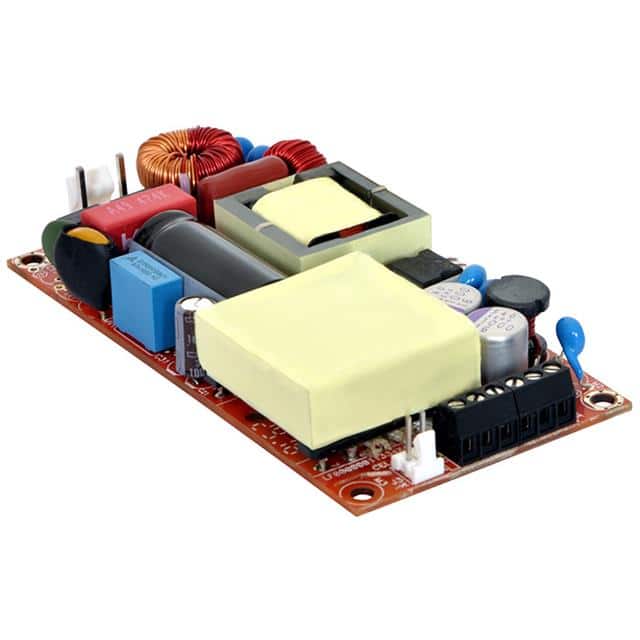

The EOS Power ULP180-1012 is an open-frame AC/DC converter designed for industrial applications. It provides a 12V output voltage at up to 10A, delivering 120W of power under natural convection cooling, and can reach 180W with forced air cooling.
This converter operates with a universal input voltage range of 80-264 VAC and features efficiencies up to 88%. Key electrical specifications include line regulation of +/-0.5%, load regulation of +/-1%, and a hold-up time of 10ms at 180W. It incorporates over-current, over-voltage, and short-circuit protection.
The ULP180-1012 is built for reliability, boasting an MTBF of 3.37 million hours. It operates within a wide temperature range of -40°C to 70°C and meets various safety and compliance standards including CB, CE, cUL, NEMKO, and UL. Its compact dimensions (4.00" L x 2.00" W x 0.75" H) and chassis mount type make it suitable for integration into various systems.
This model is approved with metal enclosures and accessories, and features like adjustable output, PFC, and standby output enhance its versatility for ITE (Commercial) applications.
The input voltage range is 80-264 VAC (universal).
Output voltage is 12V with a current rating of 10A (120W) convection or up to 15A (180W) with forced air.
The operating temperature range is -40°C to 70°C with derating.
Over current protection (>110%), over voltage protection (110-140%), and hiccup mode short circuit protection.
It is an open frame chassis mount type with dimensions 101.6 x 50.8 x 19.1 mm.
Typical efficiency is 88% for the 12V output variant.
Input to output isolation is 4000V DC.
