| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Output Voltage | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Transistor Type | |
| Vce Saturation (Max) @ Ib, Ic | |
| Voltage |

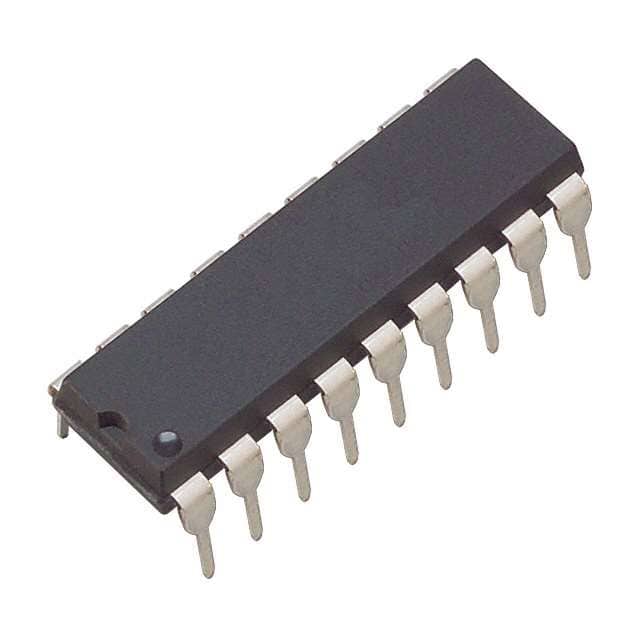

The ULN2803AN from Texas Instruments is a high-voltage, high-current Darlington transistor array. It comprises eight NPN Darlington pairs, each with a 500-mA collector current rating and integrated common-cathode clamp diodes for switching inductive loads.
This device is suitable for various applications including relay drivers, hammer drivers, lamp drivers, and display drivers. It features 50V high-voltage outputs and includes a 2.7-kΩ series base resistor for each Darlington pair, enabling direct operation with TTL or 5V CMOS logic devices.
The ULN2803AN is available in an 18-DIP (Through Hole) package, with a body size of 22.48 mm x 6.35 mm. Its operating temperature range is -40°C to 85°C.
Key electrical characteristics include a 50V collector-emitter voltage and a 500mA collector current. The saturation voltage is a maximum of 1.6V at 500µA input current and 350mA output current.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C.
18-DIP (0.300", 7.62mm) through-hole package.
500 mA.
50 V.
Yes, each channel has a 2.7 kΩ series base resistor.
1.6V maximum at 350 mA collector current with 500 µA base current.
