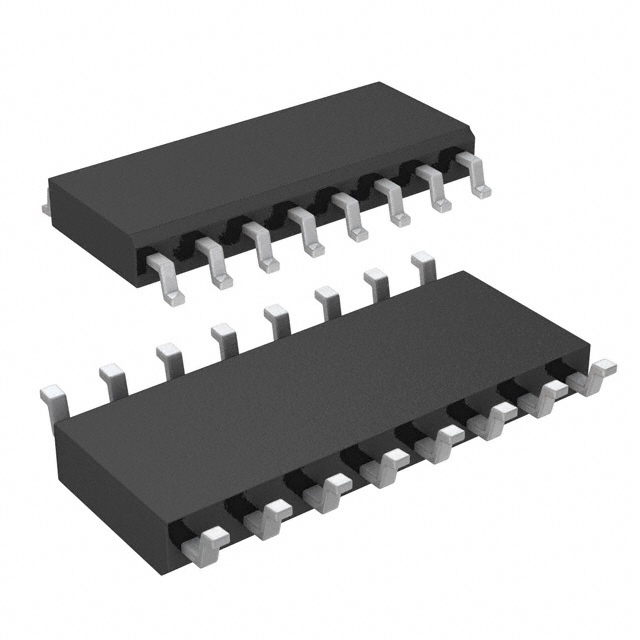

The ULN2004AS16-13 from Diodes Incorporated is a versatile Darlington transistor array designed for driving a wide range of loads. It contains seven open collector common emitter pairs, with each pair capable of handling 500mA and providing 50V outputs. This device is suitable for applications involving solenoids, relays, DC motors, LED displays, and filament lamps.
The array features include output clamp diodes for inductive load driving and inputs compatible with popular logic types. The ULN2004A variant is specifically designed for 6V to 15V CMOS and PMOS logic families. It is available in a 16-SOIC package, suitable for surface mount applications.
With a maximum collector-emitter voltage of 50V and a continuous DC collector current of 0.5A per output, the ULN2004AS16-13 offers robust performance. The operating temperature range is -40°C to 105°C (TA), making it suitable for various environmental conditions. The device operates with a supply voltage range of 30V minimum to 30V maximum, though the specific Vcc/Vdd is not required for operation.
This component is packaged in a 16-SOIC (0.154", 3.90mm Width) format, designed for surface mounting. It is supplied on tape and reel. The device is RoHS compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage is 50V.
The maximum collector current is 500mA per channel.
The operating temperature range is -40°C to 105°C.
The device is available in a 16-SOIC (0.154", 3.90mm Width) surface-mount package.
The device has 7 output channels.
Typical rise and fall times are 250 ns.
