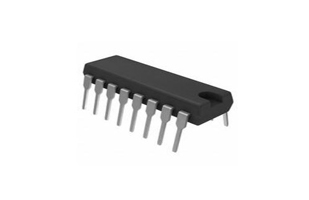

ULN2004A The ULN2004A is a high-voltage, high-current Darlington Array from Texas Instruments, featuring seven open collector Darlington pairs. It offers 500 mA output current per channel and includes integrated suppression diodes for inductive loads.
Mfr Part #:

ULN2004A

Available from 1 distributors
Mfr Name: NA
NA
The ULN2004A is a high-voltage, high-current Darlington Array from Texas Instruments, featuring seven open collector Darlington pairs. It offers 500 mA output current per channel and includes integrated suppression diodes for inductive loads.
✓ Total Stock: 17 pcs
$ Price Range: $0.99

ULN2004A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
17 pcs
On Request
17 pcs On Request 1 On Request On Request 9119 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ULN2004A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Output Current
Output Voltage
SVHC Present
View Similar Products (0)

ULN2004A Description

Short technical summary and product information.

The ULN2004A is a high-voltage, high-current Darlington Array containing seven open collector Darlington pairs with common emitters. Each channel is rated at 500 mA and can withstand peak currents of 600 mA. The output voltage rating is 50 V.



Integrated suppression diodes are included for inductive load driving, simplifying circuit design. The inputs are pinned opposite the outputs to facilitate board layout. The ULN2004A interfaces to common logic families, specifically designed for 6 - 15 V CMOS and PMOS logic.



These versatile devices are suitable for driving a wide range of loads, including solenoids, relay DC motors, LED display filament lamps, thermal printheads, and high-power buffers. The ULN2004A is supplied in a 16-pin DIP package with a copper leadframe to reduce thermal resistance.



Key specifications include an output current of 500 mA per driver (600 mA peak), an output voltage of 50 V, and a typical hFE of 1000. The inputs are TTL/CMOS/PMOS/DTL compatible.

ULN2004A Quick Information

Product Type: Darlington Array
Canonical Name: ULN2004A Darlington Array
Subcategory: Darlington Array

ULN2004A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ULN2004A Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

ULN2004A Features

  • Seven Darlingtons per package.
  • Output current 500 mA per driver.
  • Output voltage rated at 50 V.
  • Integrated suppression diodes included.
  • TTL/CMOS/PMOS/DTL compatible inputs.

ULN2004A Applications

  • Relay and solenoid driver circuits.
  • Stepper motor winding control.
  • Lamp and LED array driving.
  • Logic interface for high-current loads.
  • Inductive load switching with clamp diodes.

ULN2004A FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum output current per driver?

500 mA continuous, 600 mA peak.

What is the maximum output voltage rating?

50 V.

What is the typical DC current gain (hFE)?

1000.

What logic families can this device interface with?

6-15 V CMOS and PMOS logic families.

What is the package type of the ULN2004A?

DIP (Dual In-line Package).
