| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Diameter | |
| Height | |
| Impedance | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance |

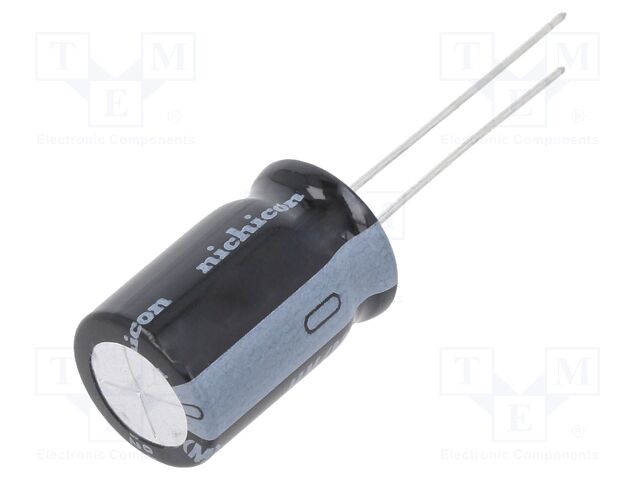

This Nichicon UHW1J152MHD6 is a THT (Through-Hole Technology) electrolytic capacitor from the UHW series, characterized by its low Equivalent Series Resistance (ESR). It offers a capacitance of 1500µF and can operate at up to 63V DC, making it suitable for a range of power supply and filtering applications.
The capacitor features a body diameter of 18mm and a height of 31.5mm, with a terminal pitch of 7.5mm, ensuring compatibility with standard PCB layouts. Its operating temperature range spans from -40°C to 105°C, providing robustness in diverse environmental conditions. The component has a rated service life of 12000 hours and an impedance of 24mΩ at its specified frequency.
With a nominal operating current of 3.1A and a leakage current of 945µA, the UHW1J152MHD6 is engineered for efficient and stable operation. Its ±20% tolerance ensures adequate performance for general-purpose electronic circuits requiring stable capacitance values.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.42 | $2.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance of the UHW1J152MHD6 capacitor is 1500µF.
The UHW1J152MHD6 capacitor has an operating voltage of 63V DC.
The operating temperature range for the UHW1J152MHD6 capacitor is -40°C to 105°C.
The UHW1J152MHD6 capacitor has a rated service life of 12000 hours.
The UHW1J152MHD6 capacitor has a diameter of 18mm and a height of 31.5mm.
