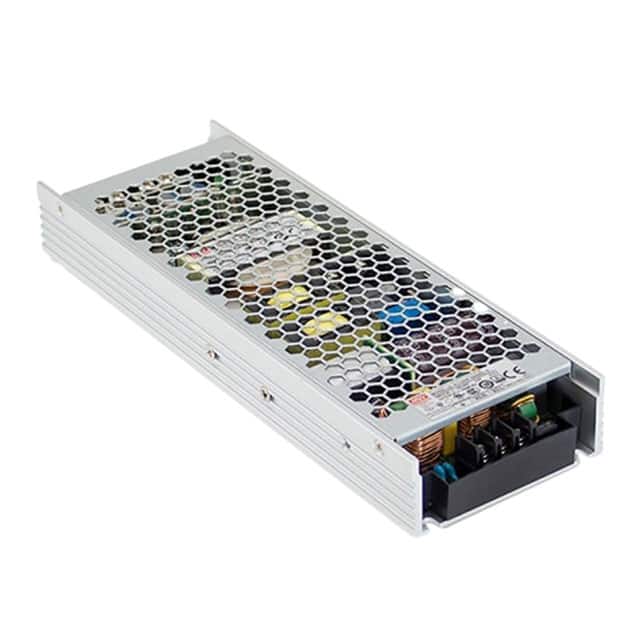

The Mean Well USA UHP-500R-24 is an enclosed AC/DC power supply designed for various applications, including household appliances and ITE commercial equipment. It provides a stable 24V output with a rated current of 20.9A, delivering a total power of 501.6W. The unit features a wide input voltage range of 90-264VAC and 127-370VDC, with built-in active PFC function for improved efficiency.
Key features include a slim, low-profile design (31mm height) and a fanless convection cooling system, making it suitable for space-constrained environments. It can withstand a 300VAC surge input for 5 seconds and offers 150% peak load capability for short durations. The operating temperature range is -20°C to 70°C with derating. Protections include short circuit, overload, over voltage, and over temperature.
Mounting is via chassis mount. The UHP-500R-24 has dimensions of 9.13 x 3.18 x 1.22 inches and weighs 1.99 lbs. It holds approvals from CB, CCC, CE, cURus, EAC, and TUV, ensuring compliance with various international standards.
Input: 90-264 VAC or 127-370 VDC. Output: 24V at 20.9A (502W).
Chassis mount, enclosed. Dimensions: 232 x 81 x 31 mm, weight 1.99 lbs.
-20 to 70°C with derating.
94.5%.
Short circuit, overload (110-140%), over voltage (26.4-31.2V), over temperature.
CB, CCC, CE, cURus, EAC, TUV.
5000 meters.
