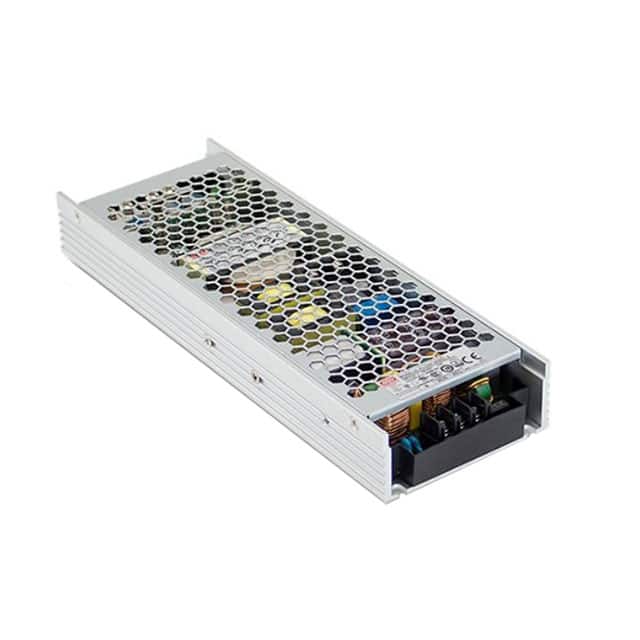

The Mean Well UHP-500R-15 is a 500-Watt enclosed AC/DC power supply designed for reliability and efficiency. It operates with a universal AC input range of 90-264VAC and features active power factor correction (PFC).
This fanless power supply utilizes conduction cooling, achieved by mounting it on a suitable aluminum plate, making it ideal for environments where dust or damp air is a concern. The slim, low-profile design facilitates integration into various systems. It offers a 15V output voltage and a rated current of 33.4A, delivering 501W of power.
Key features include adjustable output, PFC, and universal input. The UHP-500R-15 is designed for chassis mounting and has an operating temperature range of -20°C to 70°C with derating. It is suitable for applications in household appliances and ITE (Commercial) equipment.
This series also offers a redundancy option, allowing two units to be connected in parallel for failover and includes a DC OK signal output for remote status monitoring. The power supply can withstand a 300VAC surge for up to 5 seconds.
The UHP-500R-15 provides a 15V output voltage and a rated current of 33.4A.
The UHP-500R-15 has a power rating of 501W.
The UHP-500R-15 accepts a universal input voltage range of 90 to 264VAC.
The efficiency of the UHP-500R-15 is 94%.
The UHP-500R-15 operates within a temperature range of -20°C to 70°C, with derating.
The UHP-500R-15 is designed for chassis mounting.
The dimensions of the UHP-500R-15 are 232.0mm in length, 81.0mm in width, and 31.0mm in height.
