| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Power Rating | |
| Rated Current | |
| Type | |
| Voltage | |
| Weight | |
| Width |

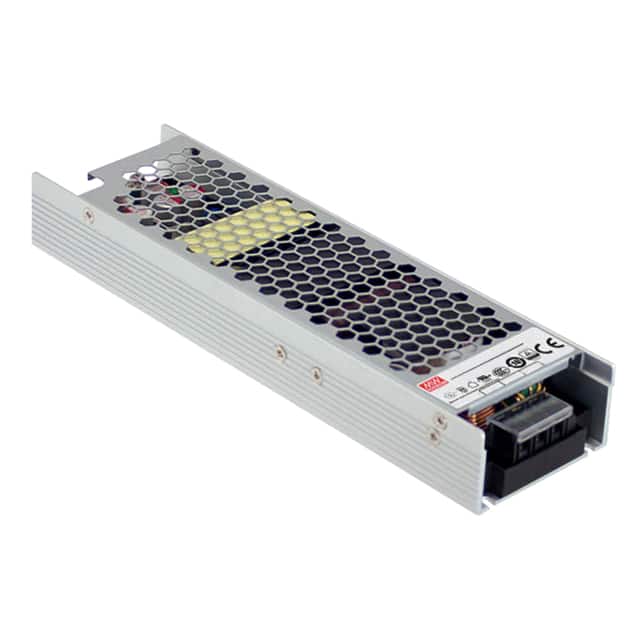

The Mean Well USA UHP-350R-12 is a 350W enclosed AC/DC power supply designed for various applications. It delivers a stable 12V output with a rated current of 29.2A and boasts a high efficiency of 91%.
Key electrical features include a wide input voltage range of 90-264VAC, built-in active PFC, and overload protection. The unit is designed to withstand a 300VAC surge input for 5 seconds and offers 150% peak load capability for short durations.
This power supply operates within a temperature range of -30°C to 70°C with derating and can function at altitudes up to 5000 meters. Its dimensions are 220.0mm x 62.0mm x 31.0mm, and it features a fanless design for quiet operation. The UHP-350R-12 is suitable for household appliances and ITE commercial applications, with approval from agencies like CB, CCC, CE, cURus, and TUV.
The UHP-350R-12 provides a single 12V output with a rated current of 29.2A.
The input voltage range is 90-264 VAC (127-370 VDC).
The operating temperature range is -30°C to 70°C with derating.
The efficiency is 91%.
It has overload protection at 110-140% of rated output power and over voltage protection that shuts down the output voltage, recovering on re-power.
Yes, the UHP-350R-12 features a fanless design.
The UHP-350R-12 comes with a 3-year warranty.
