| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

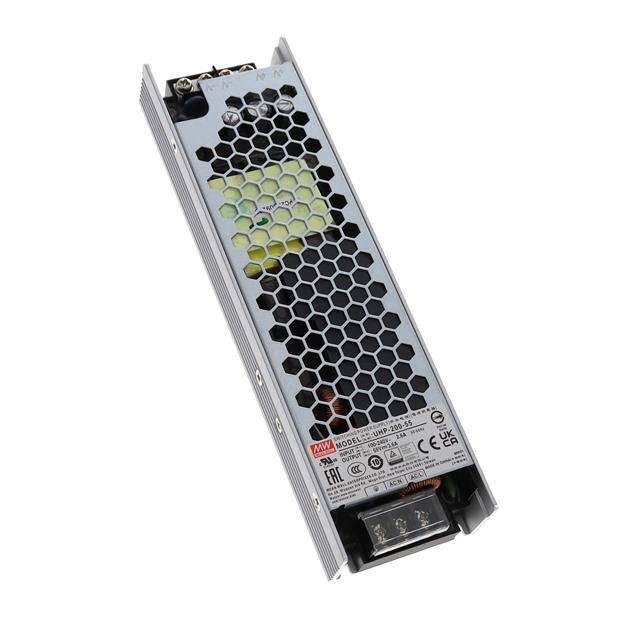

The Mean Well USA UHP-200-55 is an enclosed AC/DC power supply designed for reliable power conversion. It offers a power output of 198W and an output voltage of 55V, with a current rating of 3.6A.
Key electrical specifications include a high efficiency of 94% and features such as adjustable output, power factor correction (PFC), and universal input. The operating temperature range is -30°C to 70°C, with derating applied.
This converter is suitable for applications in household appliances and commercial ITE (Information Technology Equipment). It is designed for chassis mounting and meets safety standards including CB, CCC, CE, cURus, EAC, and TUV.
The unit has dimensions of 194.0mm x 55.0mm x 26.0mm, making it a compact solution for various integration needs.
-30°C to 70°C with derating.
94%.
194.0mm x 55.0mm x 26.0mm (7.64" x 2.17" x 1.02").
CB, CCC, CE, cURus, EAC, TUV.
3.75 kV.
3.6 A.
198W.
