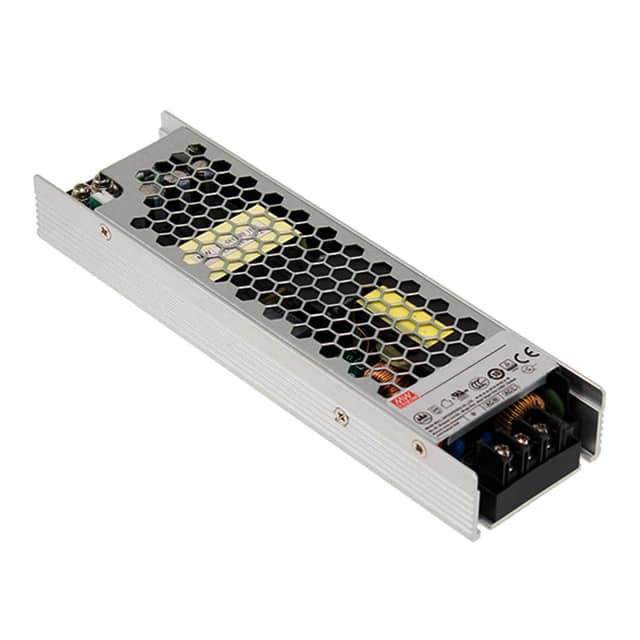

The Mean Well UHP-200-24 is a 202-watt, single-output AC/DC power supply designed for various applications. It operates with a universal input voltage range of 90-264VAC and offers a stable 24V output at 8.4A.
This series boasts a high efficiency of up to 94% and features a built-in active Power Factor Correction (PFC) function. The fanless, slim design with a low profile of 26mm allows for convection cooling when mounted on a suitable heat-dissipating plate, making it suitable for environments where dust or moisture is a concern.
Key features include protection against short circuit, overload, over voltage, and over temperature. It also includes a DC OK active signal for remote monitoring and can withstand a 300VAC surge input for up to 5 seconds. The operating temperature range is -30°C to 70°C.
Applications include industrial automation machinery, industrial control systems, mechanical and electrical equipment, electronic instruments, household appliances, and LED display applications. The UHP-200 series complies with international safety regulations such as TUV, BS EN/EN62368-1, UL62368-1, and GB4943.1.
The output is 24V at 8.4A, providing 202W.
The input voltage range is 90 to 264VAC.
The operating temperature range is -30°C to 70°C with derating.
Dimensions are 194mm x 55mm x 26mm and it is chassis mount.
It includes overload (110-140%), over voltage, and over temperature protection.
Typical efficiency is 94%.
Yes, it has a built-in active PFC function.
