| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
243 pcs
|
243 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clear Aperture | |
| Density | |
| Dimensions | |
| Mounting Type | |
| Refractive Index | |
| SVHC Present | |
| Spectral Range | |
| Temperature Coefficient | |
| Thickness | |
| Weight |

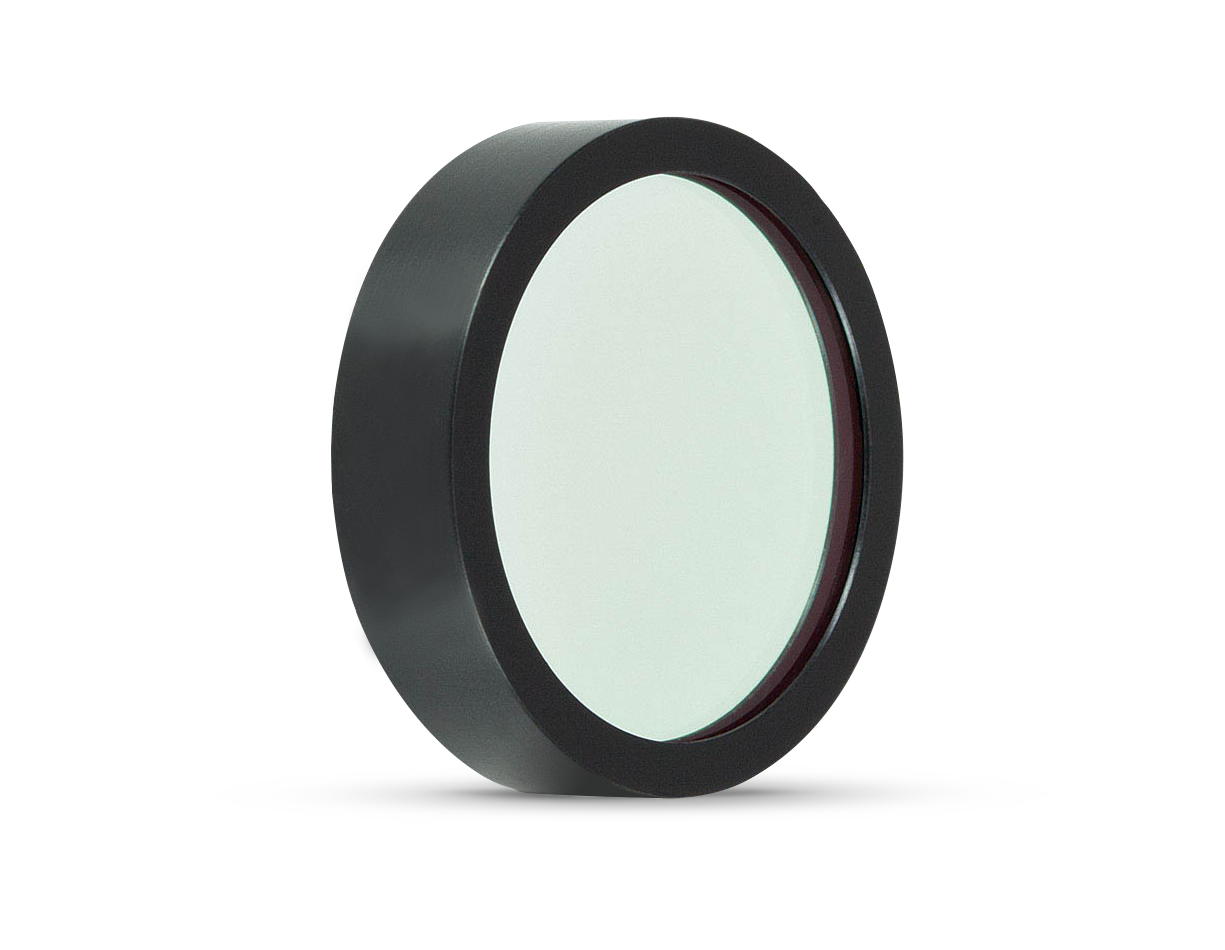

The UG11 is a UV transmitting filter from Miscellaneous, designed for use with beam profiling cameras like the BEAMAGE series. It operates within a spectral range of 250 nm to 370 nm, effectively blocking wavelengths outside this band.
Key specifications include a maximum power rating of 1 W, a surface quality of 40-20 Scratch-Dig, and a surface flatness of less than λ/4. The filter has a thickness of 3 mm and a diameter of 30.5 mm, with a clear aperture of 80% of its area. It features an SM1 mounting thread and includes an SM1/C-Mount adapter.
This filter is suitable for applications requiring precise UV light management, such as laser diagnostics and spectral analysis where specific UV wavelengths need to be isolated. Its robust construction and defined optical characteristics make it a reliable component for demanding optical setups.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.32 | $1.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The spectral range of the UG11 filter is 250 nm to 370 nm.
The UG11 filter has a maximum power handling of 1 W.
The UG11 filter has dimensions of 30.5 mm diameter and a thickness of 3 mm.
The UG11 filter features an SM1 mounting thread.
The UG11 filter is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the UG11 filter is 1 Unlimited.
The UG11 filter is REACH Unaffected.
