| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,689 pcs
|
2689 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Body Material | |
| Center Gender | |
| Contact Material (Female) | |
| Contact Material - Male | |
| Contact Resistance | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Fastening Type | |
| Frequency | |
| Impedance | |
| Insulation Resistance | |
| Insulator Material | |
| Mating Cycles | |
| Mounting Type | |
| Operating Humidity | |
| Operating Temperature Range | |
| Style | |
| VSWR | |
| Withstanding Voltage |

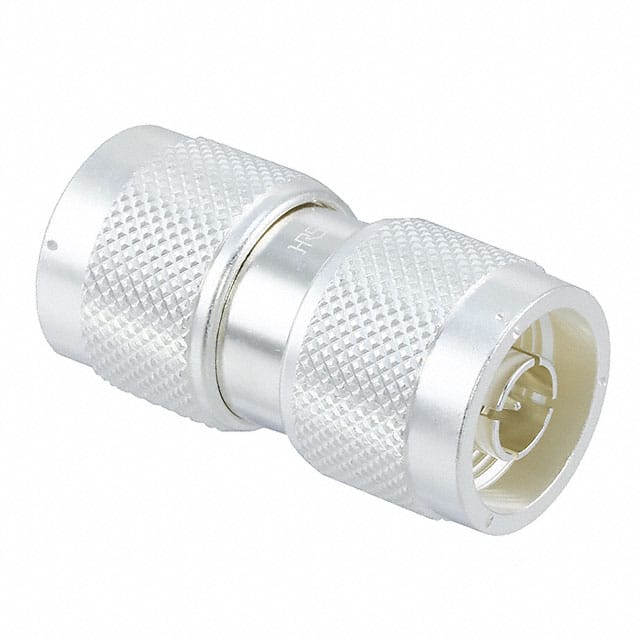

The UG-57B/U(40) is a N-Type 50 Ohm straight plug to plug coaxial adapter from Hirose Electric. It is designed for in-line connections between two N-Type male interfaces, featuring threaded coupling on both ends for secure mating.
Electrical performance includes a characteristic impedance of 50 Ohms, a maximum frequency of 2 GHz, and a maximum VSWR of 1.2 up to 2 GHz. Contact resistance is 3 mΩ max, insulation resistance is 1000 MΩ min, and withstanding voltage is 1500 VAC for 1 minute without flashover.
The adapter is constructed with a brass body (silver/nickel plated), brass male contacts (silver/gold plated), beryllium copper female contacts (silver/gold plated), and a PTFE insulator. It is rated for a minimum of 500 mating cycles and operates from -30°C to +60°C with up to 95% RH humidity.
| Qty | Low | High |
|---|---|---|
| 1+ | $62.80 | $62.80 |
| 10+ | $53.38 | $53.38 |
| 25+ | $50.04 | $50.04 |
| 50+ | $47.66 | $47.66 |
| 100+ | $45.38 | $45.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohms.
2 GHz.
1.2 maximum up to 2 GHz.
-30°C to +60°C.
Free Hanging (In-Line).
Brass with silver/nickel plating.
500 cycles minimum.
