| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

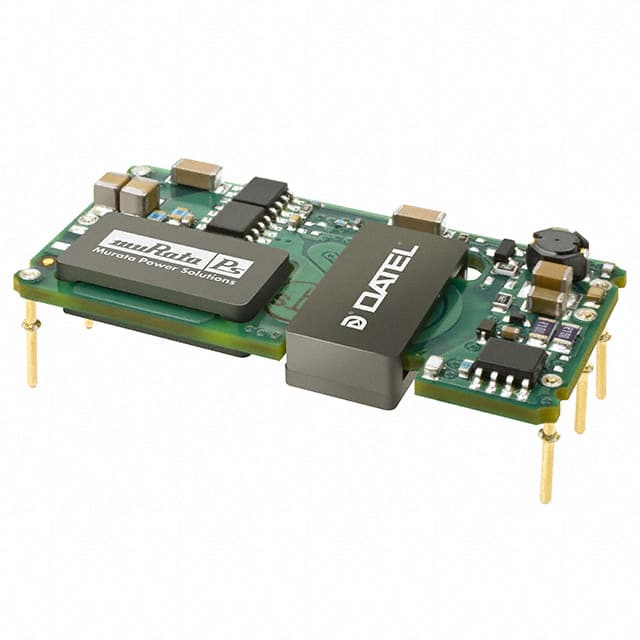

The Murata Power Solutions UEI30-150-Q12P-C is a 30W isolated DC-DC converter module designed for through-hole mounting in a compact 6-DIP package measuring 48.8mm x 23.4mm x 8.9mm. It delivers a single regulated 15V output at up to 2A from a wide 9-36V input range, making it suitable for battery-powered and industrial applications.
This converter features full magnetic and optical isolation rated at 2250V, with a typical efficiency of 87.5%. It includes comprehensive protection features such as remote on/off control, overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), short-circuit protection (SCP), and undervoltage lockout (UVLO). The control interface uses an active-high enable signal.
The UEI30-150-Q12P-C operates over a -40°C to +85°C temperature range and is designed for commercial ITE (Information Technology Equipment) applications. Its synchronous rectifier forward topology provides high efficiency and reliable performance in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $58.98 | $58.98 |
| 5+ | $56.78 | $56.78 |
| 10+ | $55.86 | $55.86 |
| 25+ | $54.67 | $54.67 |
| 84+ | $53.12 | $53.12 |
| 168+ | $52.25 | $52.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 15V DC with a maximum output current of 2A, providing 30W of power.
The input voltage range is 9V to 36V DC (Q12 model).
The operating temperature range is -40°C to +85°C.
It uses a 6-DIP through-hole module package with dimensions 48.8mm x 23.4mm x 8.9mm.
RoHS status is listed as RoHS3 compliant but is unverified; the datasheet notes RoHS-6 for 48V input models only. Verify with the manufacturer.
It includes remote on/off, overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), short-circuit protection (SCP), and undervoltage lockout (UVLO).
The isolation voltage is 2250V DC (basic insulation, Q48 models).
