| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,543 pcs
|
2543 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

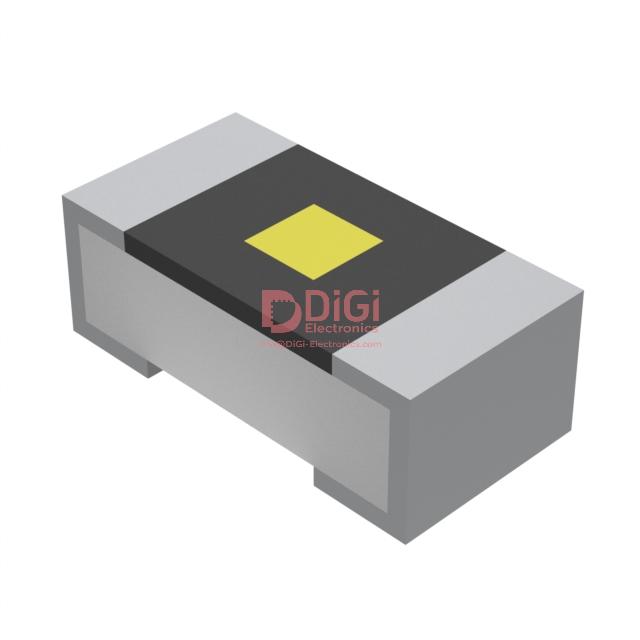

The ROHM Semiconductor UCR10EVHFSR020 is a thick film chip resistor designed for current detection. It features a resistance value of 0.02 Ohms with a tight tolerance of ±1% and a power rating of 1/3W. The operating temperature range is -55°C to 155°C.
This resistor is housed in an 0805 package, suitable for surface mounting. Its construction utilizes a thick film resistive element. The component is rated for automotive applications and corresponds to AEC-Q200 standards, indicating its suitability for demanding environments.
Key electrical characteristics include a temperature coefficient of 0/+250ppm/°C. The component's design, with the resistive element located at the bottom, helps reduce resistance shift during the mounting process and improves heat dissipation, as per ROHM's unique structure.
This part is part of the UCR series, known for its current detection capabilities. It is suitable for applications requiring precise current monitoring in automotive and industrial settings.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance of the UCR10EVHFSR020 is 0.02 Ohms.
The tolerance of the UCR10EVHFSR020 resistor is ±1%.
The power rating of the UCR10EVHFSR020 is 1/3W (0.333W).
The operating temperature range for the UCR10EVHFSR020 is -55°C to 155°C.
The UCR10EVHFSR020 resistor is available in the 0805 package size.
Yes, the UCR10EVHFSR020 corresponds to AEC-Q200 standards.
