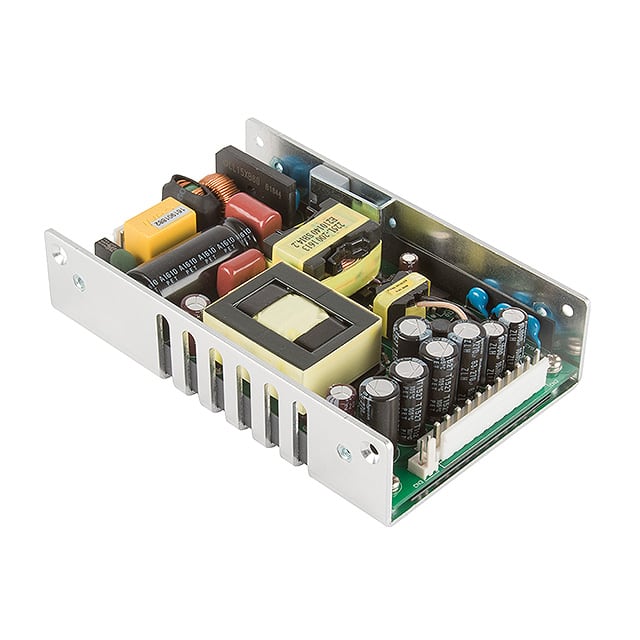

The XP Power UCP225PS48 is a versatile AC/DC power supply designed for ITE and Medical applications. It features an ultra-low profile of 1.18 inches and a compact footprint of 5.00 x 3.12 inches, offering high power density.
This model provides a 48V output with a convection-cooled rating of 150W, which can be increased to 225W with forced air cooling. It operates across a wide temperature range of -40°C to 70°C and includes features such as adjustable output, load sharing, PFC, remote on/off, remote sense, and a standby output. The power supply meets safety standards including CB and CE, and complies with EN55011/32 level B conducted emissions.
Designed for efficiency and reliability, the UCP225PS48 is suitable for demanding environments. Its open frame construction and chassis mount type facilitate integration into various equipment designs. The unit also includes a 12V fan output and an optional 5V standby output, enhancing its utility in complex systems.
The UCP225PS48 has an output voltage of 48 VDC.
The output current is 3.1 A under convection cooling.
The maximum power rating with forced air cooling is 225W.
The operating temperature range is -40°C to 70°C with derating.
The dimensions are 127.0mm x 79.2mm x 29.2mm.
It complies with CB, CE, and standard 62368-1.
Yes, it has an optional 5V/2.0A standby output.
