| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

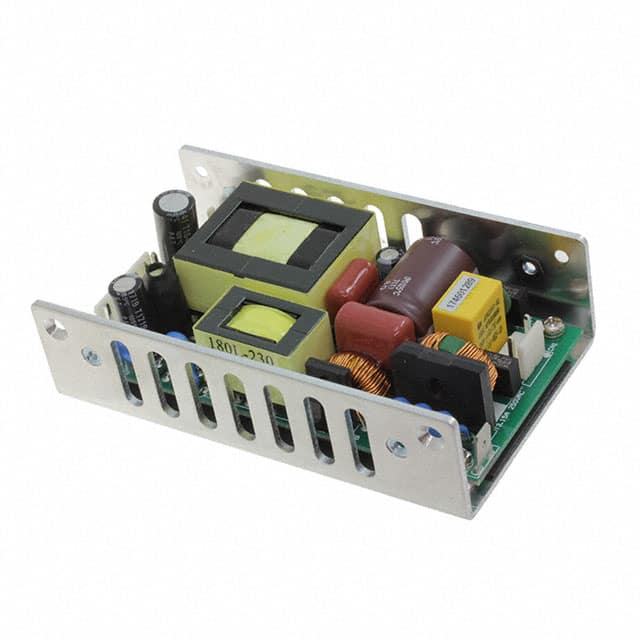

The XP Power UCP180PS36 is an AC-DC power supply from the UCP180 series, offering a 36V output at 3.33A, providing 120W of convection-cooled power or up to 180W with forced air cooling. This open-frame converter operates with a universal input voltage range of 85 to 264VAC and boasts high efficiency up to 92%.
Designed for versatility, the UCP180PS36 is approved for both ITE (Commercial) and Medical applications, meeting standards like 62368-1. It operates within a wide temperature range of -40°C to +70°C, with full power available up to +50°C. The unit includes features such as Power Factor Correction (PFC) and a 12V fan output.
With a compact footprint of 4.24" x 2.47" and a low profile of 1.16", it is suitable for chassis mounting. The power supply also meets Class B conducted and Class A radiated emissions standards, making it a reliable choice for various equipment designs requiring efficient and safe power conversion.
The UCP180PS36 has an output voltage of 36 VDC.
The maximum output current for the UCP180PS36 is 3.33 A.
The UCP180PS36 is rated for 120W convection-cooled and 180W with forced air cooling.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -40°C to +70°C.
It has approvals from CB, TUV, and UL, and is suitable for ITE and Medical applications.
