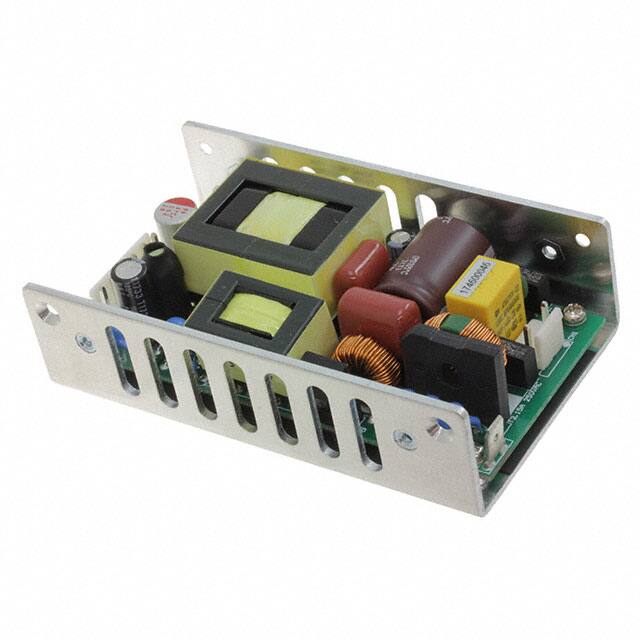

The XP Power UCP180PS12 is an open-frame AC-DC power supply from the UCP180 series, delivering 120W convection-cooled or 180W with forced air. It provides a single 12VDC output at up to 10A (15A forced air).
This power supply operates with a universal input voltage range of 85 to 264VAC and boasts high efficiency up to 92%. It is designed to meet stringent environmental legislation with low no-load power consumption (<0.5W).
Approved for ITE (Commercial) and Medical applications, the UCP180PS12 meets safety standards including CB, TUV, and UL, and complies with Class B conducted and Class A radiated emissions. It operates reliably in ambient temperatures from -40°C to +70°C, with full power available up to +50°C.
The compact dimensions of 107.7mm x 62.7mm x 29.5mm (4.24" x 2.47" x 1.16") and chassis mount type make it suitable for space-constrained designs. It also includes a 12V/0.5A fan output.
The UCP180PS12 has an output voltage range of 12 to 48 VDC.
The maximum output current for the UCP180PS12 at 12V is 15A with forced air cooling.
The UCP180PS12 is rated for 120W convection cooled and 180W with forced air cooling.
The operating temperature range is -40°C to +70°C for convection cooling and -20°C to +70°C for forced air cooling.
The UCP180PS12 is approved for ITE (Commercial) and Medical applications.
The RoHS status is RoHS3 Compliant.
