| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
286,888 pcs
|
286888 pcs | On Request | 1 | On Request | On Request | 1007+ | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,700 pcs
|
3700 pcs | On Request | 1 | On Request | On Request | 2013 | On Request | On Request | |
|
197 pcs
|
197 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Type | |
| Unidirectional Channels | |
| Voltage | |
| Voltage - Reverse Standoff (Typ) |

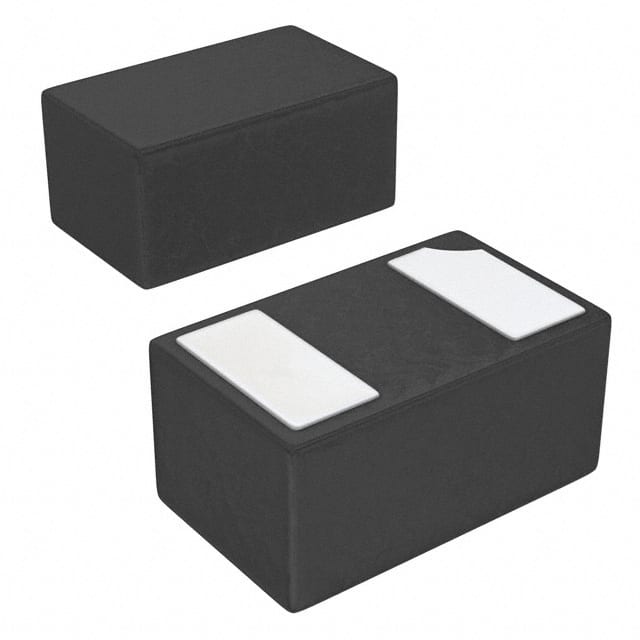

The Semtech UCLAMP3301P.TCT is a unidirectional TVS (transient voltage suppression) diode designed for general purpose circuit protection. It features a reverse standoff voltage of 3.3V and a minimum breakdown voltage of 8V. The device can handle peak pulse currents up to 5A under an 8/20µs waveform and offers a peak pulse power rating of 40W. It does not include power line protection. The diode is housed in a compact 2-UDFN surface mount package (SLP1006P2) and operates over a temperature range of -40°C to 85°C. Typical capacitance is 25pF at 1MHz. This component is suitable for protecting sensitive electronics from voltage transients in a variety of applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
| 10+ | $0.78 | $0.78 |
| 100+ | $0.51 | $0.51 |
| 500+ | $0.40 | $0.40 |
| 1,000+ | $0.36 | $0.36 |
| 3,000+ | $0.31 | $0.31 |
| 6,000+ | $0.29 | $0.29 |
| 9,000+ | $0.28 | $0.28 |
| 15,000+ | $0.26 | $0.26 |
| 21,000+ | $0.25 | $0.25 |
| 30,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 3.3V typical.
The minimum breakdown voltage is 8V.
The peak pulse current is 5A under an 8/20µs waveform.
It comes in a 2-UDFN surface mount package, also known as SLP1006P2.
The operating temperature range is -40°C to 85°C.
No, it does not include power line protection.
