| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
360 pcs
|
360 pcs | On Request | 1 | On Request | On Request | 1630+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Power Line Protection | |
| Reverse Standoff Voltage | |
| Supplier Device Package | |
| Type | |
| Unidirectional Channels | |
| Voltage |

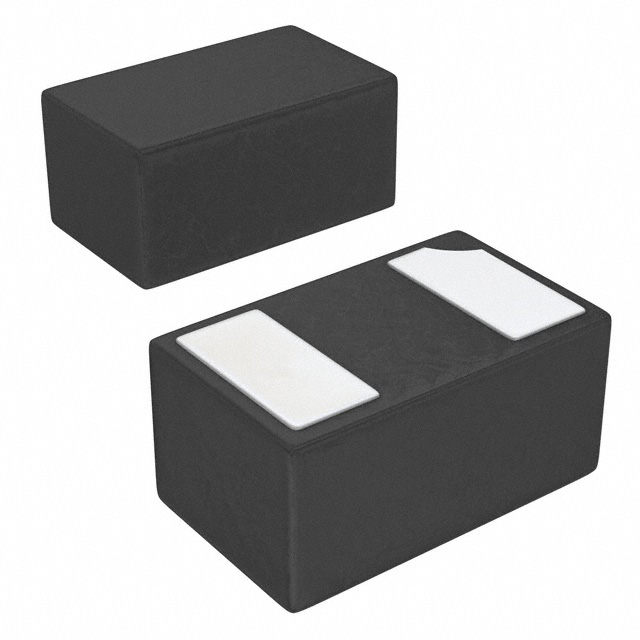

The Semtech UCLAMP1871P.TNT is a unidirectional TVS diode designed for automotive applications. It features an 18V reverse standoff voltage and a clamping voltage of 45V. The device can handle a peak pulse current of 35A under an 8/20µs waveform. It offers a capacitance of 225pF at 1MHz.
This TVS diode is housed in a compact 2-UDFN surface mount package with a supplier device package of SGP1610N2. It operates over a temperature range of -40°C to 125°C. The unidirectional polarity makes it suitable for protecting single-line circuits from voltage transients.
The component is RoHS3 compliant and has an MSL of 1 (Unlimited). It is intended for use in automotive electronics where reliable overvoltage protection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.35 | $1.35 |
| 10+ | $0.85 | $0.85 |
| 100+ | $0.56 | $0.56 |
| 500+ | $0.44 | $0.44 |
| 1,000+ | $0.40 | $0.40 |
| 2,000+ | $0.36 | $0.36 |
| 5,000+ | $0.34 | $0.34 |
| 10,000+ | $0.30 | $0.30 |
| 20,000+ | $0.28 | $0.28 |
| 30,000+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
18 V
45 V
35 A under 8/20µs test condition
225 pF at 1 MHz
2-UDFN surface mount package (SGP1610N2)
Unidirectional
-40°C to 125°C
