| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,486 pcs
|
9486 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Capacitance @ Frequency | |
| Clamping Voltage | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Unidirectional Channels | |
| Voltage |

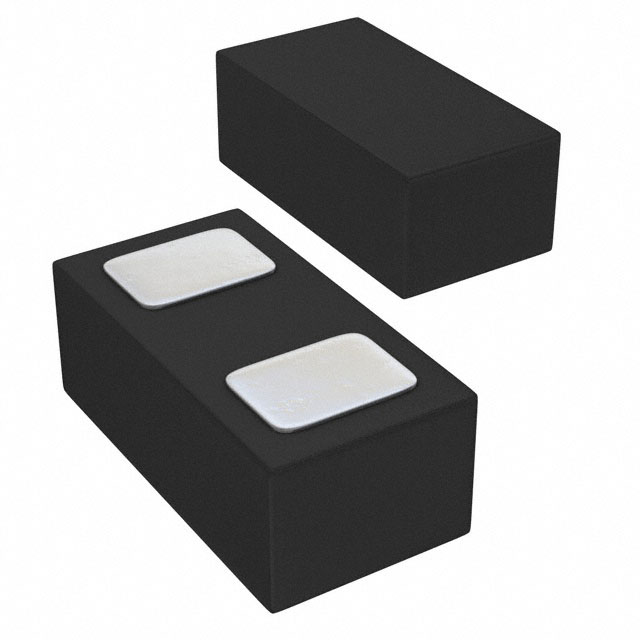

The Semtech UCLAMP0561P.TNT is a Zener type Transient Voltage Suppressor (TVS) diode designed for general purpose applications. It offers a 5V standoff voltage and a maximum clamping voltage of 15V at 80A peak pulse current. The diode has a capacitance of 800pF at 1MHz.
This TVS diode is suitable for surface mount applications and comes in a compact 2-UDFN package, specifically the 2-SLP1608P supplier package. It operates within a temperature range of -40°C to 125°C (TJ). The component is designed for unidirectional channel protection and is not intended for power line protection.
It is RoHS3 compliant, has an MSL rating of 1, and is REACH unaffected. The UCLAMP0561P.TNT is a reliable choice for protecting sensitive electronic components from voltage transients.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.55 | $0.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The standoff voltage is 5V.
The clamping voltage is 15V at 80A.
The peak pulse current is 80A.
The capacitance is 800pF at 1MHz.
The operating temperature range is -40°C to 125°C.
The package type is 2-UDFN.
It is a surface mount device.
