Mfr Part #:

UCLAMP0506P.TCT

Mfr Name: Semtech

The Semtech UCLAMP0506P.TCT is a 6-channel unidirectional TVS diode with 5V reverse standoff voltage and 11V clamping. It offers 100W peak pulse power and 7A peak pulse current (8/20µs).

✓ Total Stock: 5,385 pcs

$ Price Range: $0.30 - $1.43

UCLAMP0506P.TCT Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	2,915 pcs On Request	2915 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	2,470 pcs On Request	2470 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

UCLAMP0506P.TCT Description

Short technical summary and product information.

The UCLAMP0506P.TCT is a 6-channel unidirectional Zener TVS diode manufactured by Semtech. It features a reverse standoff voltage of 5 V (typical) and a maximum clamping voltage of 11 V. The device is rated for a peak pulse current of 7 A (8/20 µs waveform) and a peak pulse power of 100 W. Capacitance is 60 pF at 1 MHz.

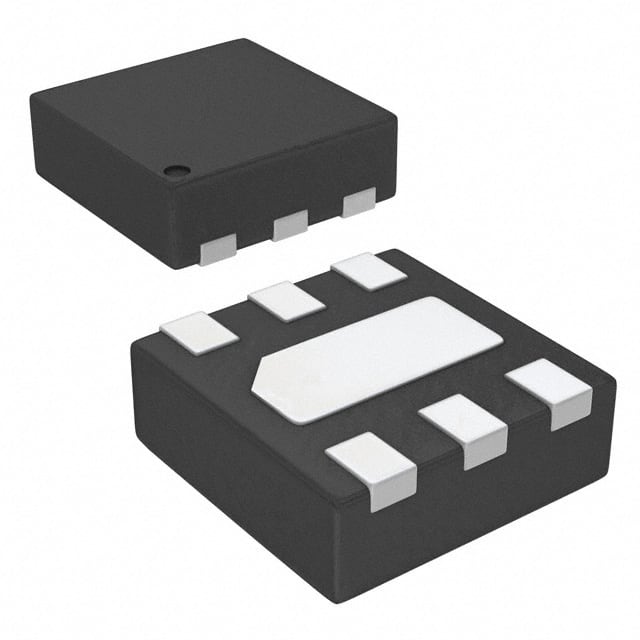

The operating junction temperature range spans -55°C to 125°C. The component is designed for surface mount assembly and comes in a 6-UFDFN exposed pad package, with the supplier device package designated as SLP1616P6 (1.6 x 1.6 mm). It does not include power line protection.

As a general-purpose ESD and transient voltage suppressor, this diode is suitable for protecting sensitive electronics in a variety of applications. The small footprint package makes it ideal for space-constrained designs. No datasheet or manufacturer product page is currently linked.

UCLAMP0506P.TCT Quick Information

Product Type: TVS Diode

Canonical Name: Semtech UCLAMP0506P.TCT TVS Diode, 6-Channel, 5V Reverse Standoff, 11V Clamping

Subcategory: TVS Diode

UCLAMP0506P.TCT Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Level 1 (Unlimited)

REACH Status: REACH Unaffected

UCLAMP0506P.TCT Estimated Pricing

Qty	Low	High
1+	$1.43	$1.43
10+	$0.90	$0.90
100+	$0.60	$0.60
500+	$0.46	$0.46
1,000+	$0.42	$0.42
3,000+	$0.37	$0.37
6,000+	$0.34	$0.34
9,000+	$0.33	$0.33
15,000+	$0.31	$0.31
21,000+	$0.30	$0.30
30,000+	$0.30	$0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

UCLAMP0506P.TCT Features

6-channel unidirectional Zener TVS diode.
5V reverse standoff voltage rating.
11V maximum clamping voltage.
100W peak pulse power handling.
Surface mount SLP1616P6 package.

UCLAMP0506P.TCT Applications

General purpose transient voltage suppression.
Protects sensitive electronics from ESD events.
Suitable for data lines and I/O protection.
Used in portable electronics and communication systems.

UCLAMP0506P.TCT FAQs

7 frequently asked questions generated from this part’s specifications.

What is the reverse standoff voltage of the UCLAMP0506P.TCT?

5 V (Typical).

What is the maximum clamping voltage?

11 V.

What is the peak pulse current rating?

7 A (8/20 µs waveform).

What is the package type?

6-UFDFN Exposed Pad; supplier device package SLP1616P6 (1.6x1.6 mm).

How many channels does it have?

6 unidirectional channels.

What is the operating temperature range?

-55°C to 125°C (junction temperature).

What is the capacitance?

60 pF at 1 MHz.

Category	TVS - Diodes
Manufacturer Name	Semtech
Applications	General Purpose
Capacitance @ Frequency	60 pF
Current	7 A
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 125°C (TJ)
Power	100 W
Power Line Protection	No
Supplier Device Package	SLP1616P6 (1.6x1.6)
Type	Zener
Unidirectional Channels	6
Voltage	11 V
