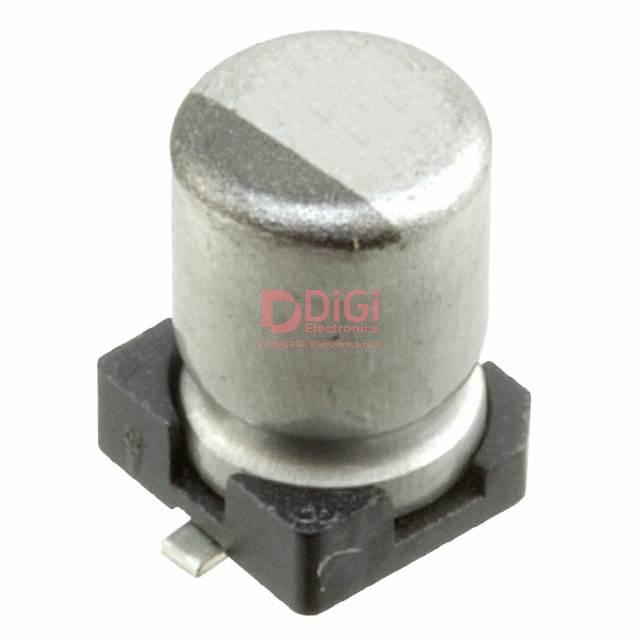

UCD1C220MCL6GS The Nichicon UCD1C220MCL6GS is a 22µF, 16V aluminum electrolytic capacitor. It is designed for automotive applications and rated for 2000 hours at 105°C.
Mfr Part #:

UCD1C220MCL6GS

Available from 2 distributors
Mfr Name: Nichicon
Nichicon
The Nichicon UCD1C220MCL6GS is a 22µF, 16V aluminum electrolytic capacitor. It is designed for automotive applications and rated for 2000 hours at 105°C.
✓ Total Stock: 1,012 pcs
$ Price Range: $1.32

UCD1C220MCL6GS Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
506 pcs
On Request
506 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
506 pcs
On Request
506 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UCD1C220MCL6GS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Impedance
Operating Temperature
Polarization
Ratings
Tolerance
View Similar Products (0)

UCD1C220MCL6GS Description

Short technical summary and product information.

This Nichicon UCD1C220MCL6GS is an aluminum electrolytic capacitor with a capacitance of 22µF and a rated voltage of 16V. It features a tolerance of ±20% and operates within a temperature range of -55°C to 105°C.



The capacitor is designed for automotive applications and meets the AEC-Q200 standard. It has a rated lifetime of 2000 hours at 105°C, indicating good reliability for demanding environments. The component is polarized and comes in a Radial, Can - SMD package.



Key electrical characteristics include a ripple current of 45 mA at 120 Hz and 90 mA at 100 kHz, with an impedance of 1.35 Ohms. The packaging is available in Cut Tape (CT) and Digi-Reel® formats.

UCD1C220MCL6GS Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: UCD
Canonical Name: Nichicon UCD1C220MCL6GS Aluminum Electrolytic Capacitor
Subcategory: Aluminum Electrolytic Capacitors

UCD1C220MCL6GS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

UCD1C220MCL6GS Estimated Pricing

Qty Low High
1+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

UCD1C220MCL6GS Features

  • 22µF capacitance, 16V rated voltage.
  • Automotive applications, AEC-Q200 qualified.
  • 2000 hours lifetime at 105°C.
  • Wide operating temperature range: -55°C to 105°C.
  • Radial, Can - SMD package type.

UCD1C220MCL6GS Applications

  • Suitable for automotive electronic control units.
  • Used in power supply filtering circuits.
  • Ideal for DC-DC converter input/output stages.
  • Applicable in engine management systems.

UCD1C220MCL6GS FAQs

6 frequently asked questions generated from this part’s specifications.
What is the capacitance and voltage rating of the UCD1C220MCL6GS?

The UCD1C220MCL6GS has a capacitance of 22 µF and a voltage rating of 16 V.

What is the operating temperature range of this capacitor?

The operating temperature range is -55°C to 105°C.

What is the lifetime rating of the UCD1C220MCL6GS?

The capacitor is rated for 2000 hours at 105°C.

Is the UCD1C220MCL6GS suitable for automotive applications?

Yes, it is AEC-Q200 qualified for automotive applications.

What is the package type of this capacitor?

The package type is Radial, Can - SMD.

What is the ripple current rating of the UCD1C220MCL6GS?

The ripple current is 45 mA at 120 Hz and 90 mA at 100 kHz.
