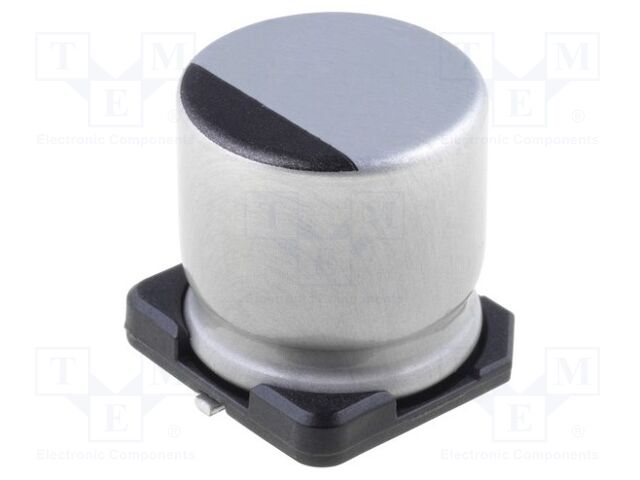

UCD1C152MNQ1MS The Nichicon UCD1C152MNQ1MS is a low ESR electrolytic capacitor with 1500µF capacitance and a 16V DC operating voltage. It is designed for SMD mounting.
Mfr Part #:

UCD1C152MNQ1MS

Available from 2 distributors
Mfr Name: Nichicon
Nichicon
The Nichicon UCD1C152MNQ1MS is a low ESR electrolytic capacitor with 1500µF capacitance and a 16V DC operating voltage. It is designed for SMD mounting.
✓ Total Stock: 600 pcs
$ Price Range: $0.59

UCD1C152MNQ1MS Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
400 pcs
On Request
400 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UCD1C152MNQ1MS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Diameter
Failure Rate
Height
Impedance
Mounting Type
Operating Temperature
Operating Voltage
Tolerance
View Similar Products (0)

UCD1C152MNQ1MS Description

Short technical summary and product information.

This Nichicon UCD1C152MNQ1MS is a low ESR electrolytic capacitor designed for surface mount applications. It offers a capacitance of 1500µF with a tolerance of ±20% and can operate at voltages up to 16V DC.



The capacitor features a low Equivalent Series Resistance (ESR), making it suitable for applications requiring efficient power delivery and filtering. Its operating temperature range spans from -55°C to 105°C, ensuring reliable performance in various environmental conditions. The body dimensions are Ø12.5x13.5mm, with a height of 13.5mm and a diameter of 12.5mm.



With a nominal impedance of 80mΩ and a maximum forward impulse current of 1.1A, this component is built for demanding electronic circuits. The UCD series from Nichicon is known for its quality and performance in power supply and decoupling applications. The standard package quantity is 200 pieces.



Designed for ease of integration into modern electronic assemblies, the SMD mounting type facilitates automated manufacturing processes. Its robust construction and specified service life of 5000 hours contribute to the longevity of the end product.

UCD1C152MNQ1MS Quick Information

Product Type: Electrolytic Capacitor
Series: UCD
Canonical Name: Nichicon UCD Series Low ESR Electrolytic Capacitor 1500µF 16VDC
Subcategory: Electrolytic Capacitor

UCD1C152MNQ1MS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

UCD1C152MNQ1MS Estimated Pricing

Qty Low High
1+ $0.59 $0.59

Estimated market price range - modelled values for guidance only, not live distributor offers.

UCD1C152MNQ1MS Features

  • Low ESR electrolytic capacitor for efficient performance.
  • 1500µF capacitance with 16V DC operating voltage.
  • SMD mounting for automated assembly.
  • Wide operating temperature range of -55°C to 105°C.
  • Nominal impedance of 80mΩ at specified conditions.

UCD1C152MNQ1MS Applications

  • Ideal for power supply filtering circuits.
  • Suitable for decoupling applications.
  • Used in high-frequency designs.
  • Effective in smoothing voltage ripples.

UCD1C152MNQ1MS FAQs

6 frequently asked questions generated from this part’s specifications.
What is the capacitance of the UCD1C152MNQ1MS capacitor?

The capacitance is 1500µF.

What is the maximum operating voltage for this capacitor?

The maximum operating voltage is 16V DC.

What is the impedance of the UCD1C152MNQ1MS capacitor?

The nominal impedance is 80mΩ.

What is the operating temperature range for this capacitor?

The operating temperature range is -55°C to 105°C.

What are the body dimensions of the capacitor?

The body dimensions are Ø12.5x13.5mm.

What type of mounting does the UCD1C152MNQ1MS capacitor use?

It uses SMD mounting.
