| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90,400 pcs
|
90400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Current | |
| Driven Configuration | |
| Gate Type | |
| Input Type | |
| Lead Style | |
| Logic Voltage | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Rise | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Voltage | |
| Voltage |

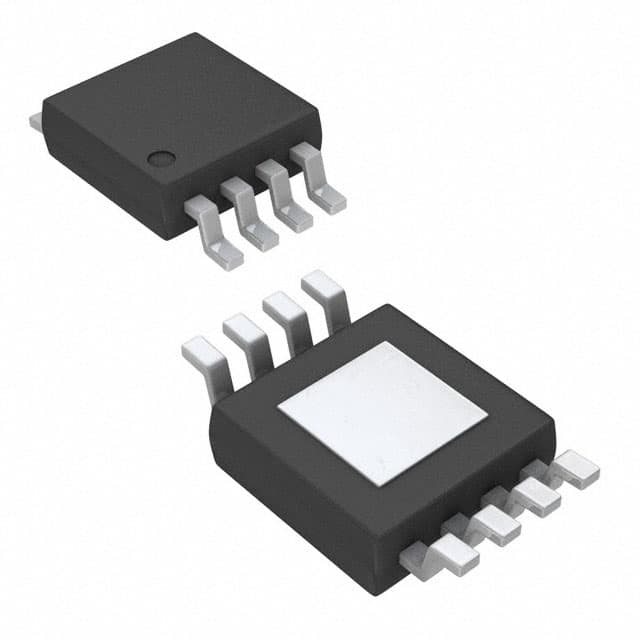

The UCC37324DGN from Texas Instruments is a high-speed dual low-side power MOSFET driver. It delivers 4A source and 4A sink peak current, crucial for driving MOSFETs effectively at the Miller Plateau Region. The device features a Bi-CMOS output architecture and TTL/CMOS inputs that are independent of the supply voltage, offering excellent noise immunity.
Key electrical specifications include a supply voltage range of 4.5V to 15V, with rise and fall times of 20ns and 15ns respectively at a 1.8nF load. Propagation delays are 35ns for rise and 25ns for fall. The operating temperature range is -40°C to 125°C.
This driver is available in an 8-pin MSOP-PowerPAD package, which significantly lowers thermal resistance, enhancing long-term reliability. It is suitable for applications such as switch-mode power supplies, DC-DC converters, solar inverters, and motor control.
The UCC37324DGN is designed for surface mount applications and is compatible with N-Channel and P-Channel MOSFETs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The UCC37324DGN provides 4A of peak source and 4A of peak sink current at the Miller Plateau Region.
The operating supply voltage range for the UCC37324DGN is from 4.5V to 15V.
The typical rise time is 20ns and the fall time is 15ns at a 1.8nF load.
The operating temperature range is -40°C to 125°C.
The UCC37324DGN is supplied in an 8-pin MSOP-PowerPAD package.
