| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,436 pcs
|
16436 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duty Cycle | |
| SVHC Present | |
| Topology |

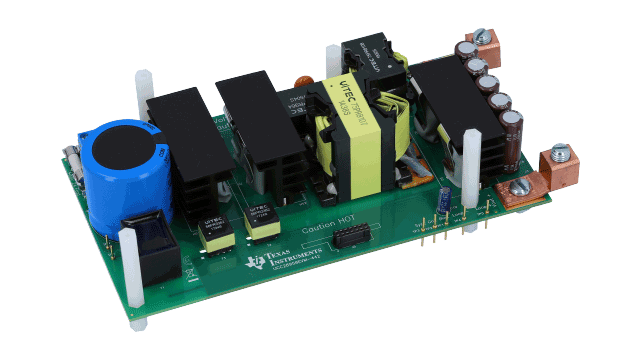

The UCC28950 from Texas Instruments is a phase-shifted full-bridge controller that provides advanced control for the output stage, including active control of the synchronous rectifier (SR). This controller ensures zero-voltage switching (ZVS) over a wide range of operating conditions, maximizing system efficiency.
Key electrical features include a programmable switching frequency up to 1 MHz with bidirectional synchronization and a cycle-by-cycle current limit protection with hiccup mode support, accurate to ±3%. It also features a low start-up current of 150µA and VDD undervoltage lockout.
The device operates across a wide temperature range from -40°C to +125°C. It is available in a 24-pin TSSOP package with dimensions of 7.80mm x 4.40mm. The UCC28950 is suitable for applications such as server power supplies, industrial power systems, and high-density power architectures.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The UCC28950 is available in a TSSOP-24 package with a body size of 7.80mm x 4.40mm.
The operating temperature range is -40°C to +125°C.
The maximum switching frequency is 1 MHz.
The cycle-by-cycle current limit accuracy is ±3%.
The start-up current is 150 µA.
The UCC28950 uses a phase-shifted full bridge topology.
The UCC28950 supports current and voltage control modes.
