UCC27512DRSR The Texas Instruments UCC27512DRSR is a single-channel, low-side gate driver designed for GaNFET, IGBT, and MOSFET power switches. It features a 4.5V to 18V supply range and provides a peak output current of 8A sink.
Mfr Part #:

UCC27512DRSR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments UCC27512DRSR is a single-channel, low-side gate driver designed for GaNFET, IGBT, and MOSFET power switches. It features a 4.5V to 18V supply range and provides a peak output current of 8A sink.
✓ Total Stock: 14,102 pcs
$ Price Range: $0.32

UCC27512DRSR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
9,075 pcs
On Request
9075 pcs On Request 1 On Request On Request 1736+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
5,027 pcs
On Request
5027 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UCC27512DRSR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Current
Driven Configuration
Gate Type
Input Type
Logic Voltage
Mounting Type
Number of Channels
Number of Drivers
Operating Temperature
Propagation Delay
Rise
Supplier Device Package
Voltage
View Similar Products (0)

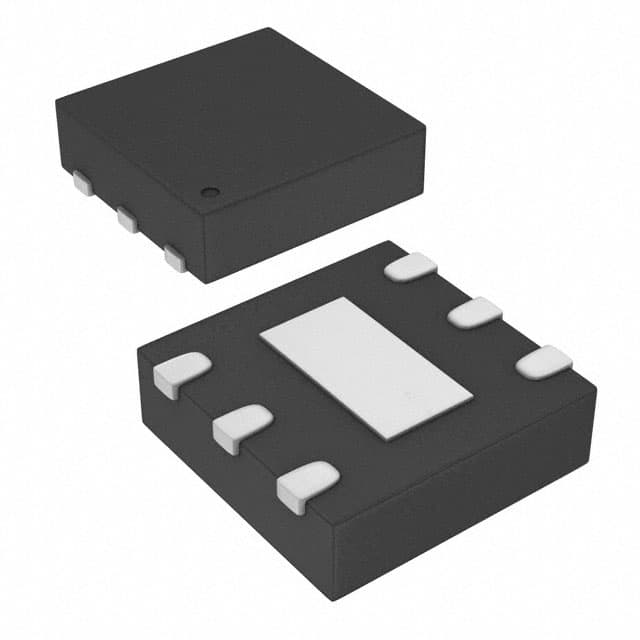

UCC27512DRSR Description

Short technical summary and product information.

The Texas Instruments UCC27512DRSR is a high-speed, single-channel, low-side gate driver. It is designed to efficiently drive GaNFET, IGBT, and N-Channel MOSFET power switches.



This device operates over a wide input supply voltage range of 4.5V to 18V. It offers a peak output current capability of 4A source and 8A sink, providing robust performance for demanding applications. The UCC27512DRSR features fast switching characteristics, with a typical rise time of 9ns and a fall time of 7ns, and a propagation delay of 13ns.



It supports both inverting and non-inverting input logic, compatible with CMOS and TTL thresholds. The driver includes a 5V undervoltage lockout (UVLO) to ensure safe operation during power up and down. The package is a 6-SON (3x3) with a surface mount type.



Key features include hysteretic logic for high noise immunity and split outputs for independent adjustment of turn-on and turn-off speeds. This makes it a versatile solution for various power management applications requiring efficient gate drive.

UCC27512DRSR Quick Information

Product Type: Gate Driver
Canonical Name: UCC27512DRSR Single-Channel, High-Speed, Low-Side Gate Driver
Subcategory: Low-Side Gate Drivers

UCC27512DRSR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

UCC27512DRSR Estimated Pricing

Qty Low High
1+ $0.32 $0.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

UCC27512DRSR Features

  • Single-channel low-side gate driver.
  • 4.5V to 18V supply voltage range.
  • 8A peak sink current capability.
  • Fast 9ns rise and 7ns fall times.
  • 6-SON (3x3) surface mount package.

UCC27512DRSR Applications

  • Efficiently drives power MOSFETs.
  • Suitable for GaNFET and IGBT applications.
  • Enables flexible turn-on/off speed control.
  • High noise immunity for robust operation.

UCC27512DRSR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the peak output current for the UCC27512DRSR?

The UCC27512DRSR has a peak output current of 4A source and 8A sink.

What is the operating voltage range for this gate driver?

The operating voltage range for the UCC27512DRSR is 4.5V to 18V.

What are the rise and fall times of the UCC27512DRSR?

The typical rise time is 9ns and the typical fall time is 7ns.

What is the operating temperature range?

The operating temperature range is -40°C to 140°C (TJ).

What package type is the UCC27512DRSR in?

The UCC27512DRSR is available in a 6-SON (3x3) package and a 6-WDFN Exposed Pad package.

What types of power switches can this gate driver control?

This gate driver is designed for GaNFET, IGBT, and N-Channel MOSFET power switches.
