Mfr Part #:

UCC21225ANPLT

Name: UCC21225ANPLT
SKU: UCC21225ANPLT

Mfr Name: Texas Instruments

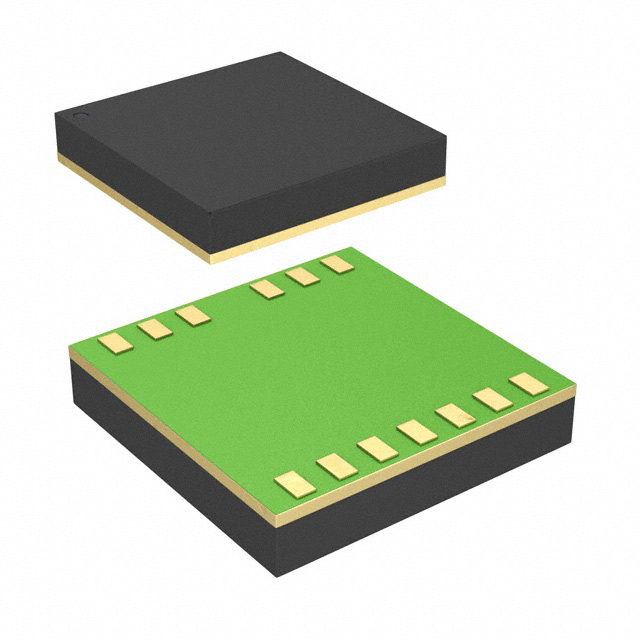

DGTL ISO 2.5KV GATE DRVR 13VLGA

Stock on Request

UCC21225ANPLT Description

Short technical summary and product information.

DGTL ISO 2.5KV GATE DRVR 13VLGA

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

UCC20225NPLT

Texas Instruments

DGTL ISO 2.5KV GATE DRVR 13VLGA

Account

Category	Isolators - Gate Drivers
Manufacturer Name	Texas Instruments
Approval Agency	CQC, CSA, UR, VDE
Common Mode Transient Immunity (Min)	100V/ns
Current	4A, 6A
Mounting Type	Surface Mount
Number of Channels	2
Operating Temperature	-40°C ~ 125°C
Propagation Delay tpLH	30ns, 30ns
Pulse Width Distortion (Max)	6ns
Rise	6ns, 7ns
Supplier Device Package	13-VLGA (5x5)
Technology	Capacitive Coupling
Voltage	3V ~ 18V
