| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| Load Capacitance | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Quiescent Current | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage | |
| Voltage Dropout (Max) |
The UC382T-ADJ is a low-dropout linear voltage regulator from Unitrode, designed for applications requiring fast transient response and precise voltage regulation. It can supply up to 3A of output current with a maximum dropout voltage of 450mV at 3A load.
This regulator offers an adjustable output voltage, defaulting to 1.2V if external resistors are omitted. It features separate bias and VIN pins, and a 5-pin package that allows for Kelvin sensing of the load voltage. Protection features include over-temperature, reverse polarity, and short-circuit protection.
The UC382T-ADJ is suitable for driving GTL and BTL buses due to its fast response to load transients. Its compact TO-220-5 package is designed for through-hole mounting. The operating temperature range is from 0°C to 100°C.
Key electrical specifications include a maximum input voltage of 7.5V and a typical quiescent current of 30mA. The PSRR at 100 KHz is 38dB, and it requires a minimum load capacitance of 100µF.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.07 | $5.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The UC382T-ADJ can provide a maximum output current of 3A.
The output voltage can be adjusted, and it defaults to 1.2V if external resistors are omitted. The maximum output voltage is 6V and the minimum is 1.2V.
The typical dropout voltage for the UC382T-ADJ at a 3A load is 350mV.
The UC382T-ADJ operates within a temperature range of 0°C to 100°C.
The UC382T-ADJ includes over-temperature, reverse polarity, and short-circuit protection.

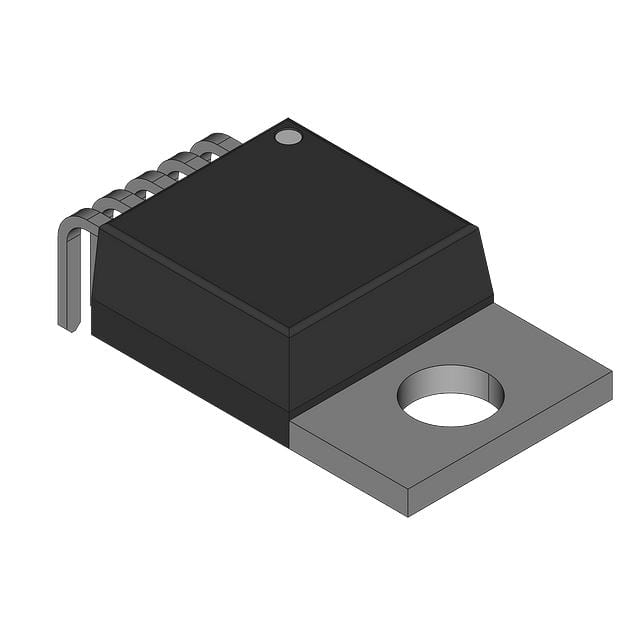

The UC382T-ADJ is supplied in a TO-220-5 package.
