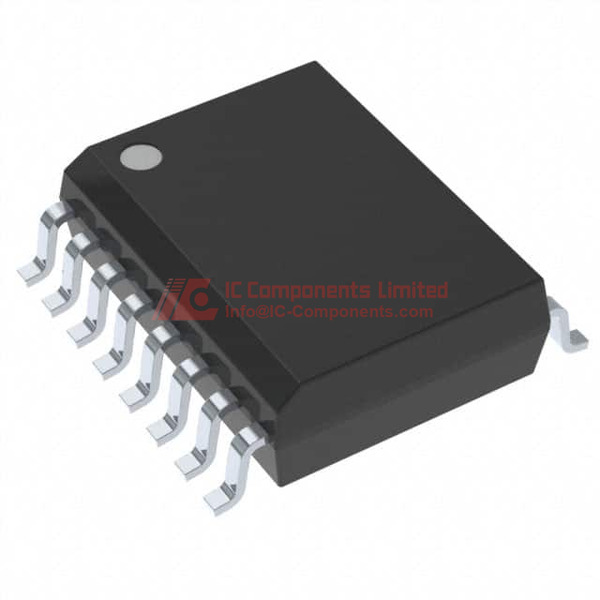

UC2825DW The Texas Instruments UC2825DW is a DC DC Switching Controller designed for various power management applications. It operates within an 8.4V to 30V supply voltage range and features a switching frequency of 340kHz to 460kHz.
Mfr Part #:

UC2825DW

Available from 1 distributors
Mfr Name: Unitrode
Unitrode
The Texas Instruments UC2825DW is a DC DC Switching Controller designed for various power management applications. It operates within an 8.4V to 30V supply voltage range and features a switching frequency of 340kHz to 460kHz.
✓ Total Stock: 154 pcs
$ Price Range: $1.92

UC2825DW Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
154 pcs
On Request
154 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

UC2825DW Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Clock Sync
Control Features
Duty Cycle
Function
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Phases
Output Type
Storage Temperature
Supplier Device Package
Synchronous Rectifier
Tape & Reel
Topology
Voltage Supply
View Similar Products (0)

UC2825DW Description

Short technical summary and product information.

The UC2825DW from Texas Instruments is a versatile DC DC Switching Controller. It supports multiple topologies including Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, and Push-Pull configurations. The device operates with a supply voltage ranging from 8.4V to 30V and offers a maximum duty cycle of 80%.



Key control features include current limit, enable, frequency control, ramp, and soft start functionalities. The UC2825DW is designed for surface mounting and comes in a 16-SOIC package. Its switching frequency can be set between 340kHz and 460kHz, making it suitable for a wide array of power conversion designs.



This controller is ideal for applications requiring efficient step-up or step-up/step-down voltage conversion. The output type is a transistor driver, and it supports positive output configurations. The operating temperature range is -40°C to 85°C (TA).

UC2825DW Quick Information

Product Type: DC DC Switching Controller
Canonical Name: UC2825DW
Subcategory: DC DC Switching Controllers

UC2825DW Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

UC2825DW Estimated Pricing

Qty Low High
1+ $1.92 $1.92

Estimated market price range - modelled values for guidance only, not live distributor offers.

UC2825DW Features

  • Supports multiple power conversion topologies.
  • Wide operating voltage from 8.4V to 30V.
  • Switching frequency between 340kHz and 460kHz.
  • Features current limit and soft start.
  • Surface mount 16-SOIC package.

UC2825DW Applications

  • Ideal for step-up voltage conversion.
  • Suitable for step-up/step-down applications.
  • Used in power management circuits.
  • Designed for various DC-DC converters.

UC2825DW FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the UC2825DW?

The operating voltage range for the UC2825DW is 8.4V to 30V.

What topologies does the UC2825DW support?

The UC2825DW supports Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, and Push-Pull topologies.

What is the maximum duty cycle of the UC2825DW?

The maximum duty cycle for the UC2825DW is 80%.

What are the control features of the UC2825DW?

The control features include Current Limit, Enable, Frequency Control, Ramp, and Soft Start.

What is the package type for the UC2825DW?

The UC2825DW is available in a 16-SOIC package.

What is the operating temperature range for the UC2825DW?

The operating temperature range is -40°C to 85°C (TA).

What is the switching frequency range for the UC2825DW?

The switching frequency range is 340kHz to 460kHz.
