Mfr Part #:

UC-00PFFH-QF7001

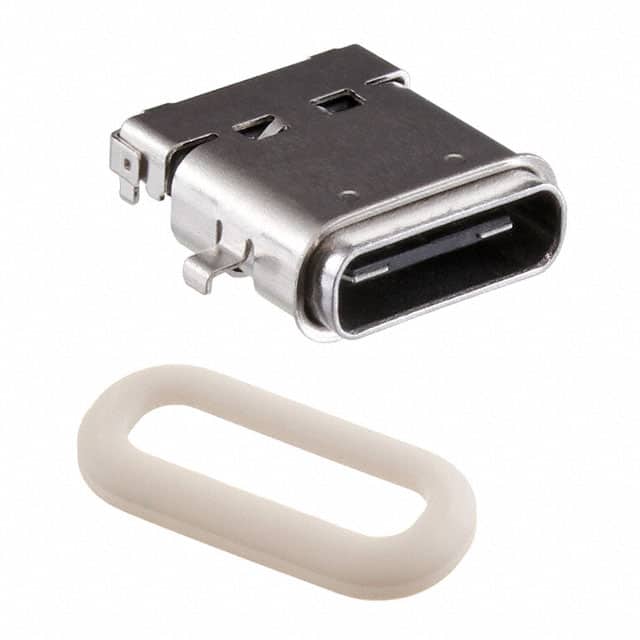

Name: UC-00PFFH-QF7001
Brand: Amphenol LTW
SKU: UC-00PFFH-QF7001

Mfr Name: Amphenol LTW

Description:

CONN RCPT USB3.1 TYPEC 24POS SMD

Stock on Request

UC-00PFFH-QF7001 Description

Short technical summary and product information.

CONN RCPT USB3.1 TYPEC 24POS SMD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	USB, DVI, HDMI Connector Assemblies
Manufacturer Name	Amphenol LTW
Connector Type	USB-C (USB TYPE-C)
Current Rating (Amps)	0.25A, 1.25A, 5A
Features	Solder Retention
Gender	Receptacle
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Horizontal, Mid Mount
Mounting Type	Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Number of Contacts	24
Number of Ports	1
Operating Temperature	-40°C ~ 85°C
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder
Voltage	30VAC/DC
