| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,400 pcs
|
5400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diameter | |
| Height | |
| Impedance | |
| Lead Spacing | |
| Mounting Type |

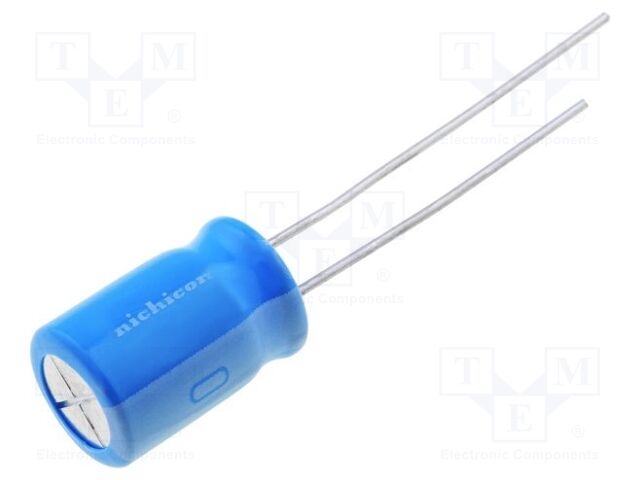

The Nichicon UBT2A470MPD8 is an electrolytic capacitor from the UBT series, designed for high-temperature operation up to +125°C. It features a capacitance of 47µF with a tolerance of ±20% at 120Hz and 20°C, and a rated voltage of 100V DC.
This capacitor is suitable for automotive electronics and other heavy-duty services. It has a rated ripple current operating capability of 0.63A and an impedance of 1.8Ω. The endurance is rated for 3000 hours at 125°C.
With a through-hole mounting type and radial lead form, the UBT2A470MPD8 has a body diameter of 10mm and a height of 16mm, with a terminal pitch of 5mm. Its operating temperature range is -40°C to +125°C.
Compliant to RoHS3, this component is designed for reliability in challenging environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance of the Nichicon UBT2A470MPD8 capacitor is 47µF.
The rated voltage for the UBT2A470MPD8 capacitor is 100V DC.
The operating temperature range of the UBT2A470MPD8 capacitor is -40°C to +125°C.
The capacitance tolerance of the UBT2A470MPD8 capacitor is ±20%.
The endurance rating for the UBT2A470MPD8 capacitor is 3000 hours at 125°C.
The UBT2A470MPD8 capacitor uses through-hole mounting.
