| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Housing Material | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shell Material | |
| Shielding | |
| Termination | |
| Voltage | |
| Withstanding Voltage |

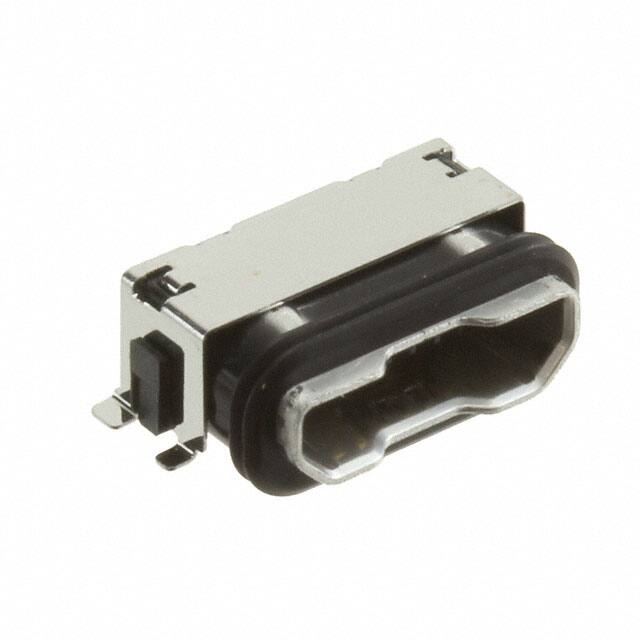

The JST UB-MC5BR3-SDWP604-4S-TF is a Micro USB Type B receptacle designed for durable and waterproof connections in mobile and portable devices. Compliant with USB 2.0 standard, this connector offers an IPX7 ingress protection rating per IEC 60529, making it suitable for environments exposed to moisture.
Electrical specifications include a current rating of 1.0 A per line on signal contacts (pins 2-4) and 1.8 A on power supply lines (pins 1 and 5), with an alternative rating of 0.5 A on signal lines. Voltage rating is 30 V AC/DC. Contact resistance is 30 mΩ maximum initial and 50 mΩ after environmental testing, with insulation resistance of 1000 MΩ minimum.
Mechanically, the connector is a right-angle surface mount device with solder termination. It features board guide and solder retention for reliable PCB mounting. The housing and cap are made from heat-resistant black resin (UL94V-0), the shell from nickel-undercoated tin-plated SUS, and contacts from gold-plated copper alloy. The outer seal is silicone rubber.
The part is rated for 10,000 mating cycles and operates over -30°C to +85°C. It is packaged in tape and reel with a standard quantity of 1500 pieces. RoHS2 compliant per datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.62 | $2.62 |
| 10+ | $2.22 | $2.22 |
| 25+ | $2.08 | $2.08 |
| 50+ | $1.98 | $1.98 |
| 100+ | $1.89 | $1.89 |
| 250+ | $1.77 | $1.77 |
| 500+ | $1.69 | $1.69 |
| 1,500+ | $1.56 | $1.56 |
| 3,000+ | $1.49 | $1.49 |
| 4,500+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has an IPX7 rating per IEC 60529 (grade 7 per JIS C 0920).
The power supply lines (contacts 1 and 5) are rated at 1.8 A per line AC/DC.
Operating temperature range is -30°C to +85°C, including temperature rise from applied current.
The connector is rated for 10,000 mating cycles.
It is a surface mount, right angle configuration with solder termination.
