| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

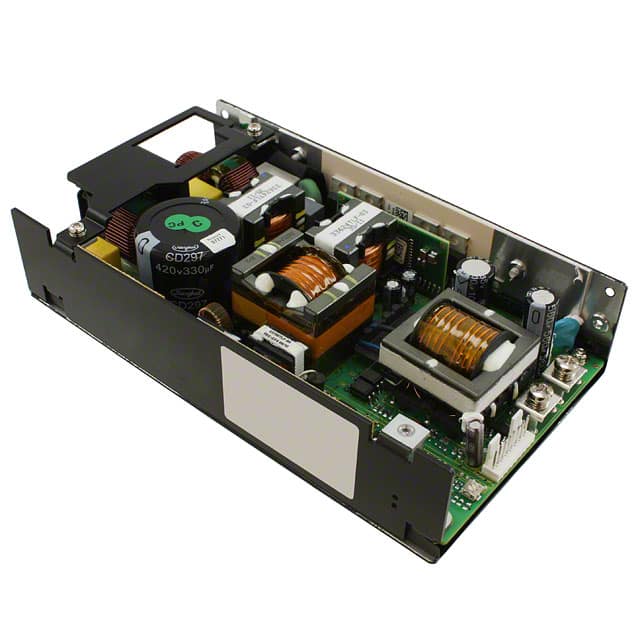

The TDK Corporation U7Y0269 is an AC/DC converter with a 24V output voltage and 300W power rating, capable of 400W with forced air. It boasts high efficiency at 94% and features universal input, adjustable output, remote on/off, and standby output.
Designed for ITE (Commercial) and Medical applications, this converter has a single output and an insulation voltage rating of 4 kV. Its dimensions are 177.8mm x 100.0mm x 39.6mm, and it is designed for chassis mounting.
The operating temperature range is 0°C to 60°C with derating. Compliance includes RoHS3, REACH Unaffected, and MSL 1 Unlimited.
The output voltage is 24V.
The power rating is 300W, with a capability of 400W using forced air.
The output current is 12.5A.
The efficiency is 94%.
The dimensions are 177.8mm x 100.0mm x 39.6mm.
The operating temperature range is 0°C to 60°C with derating.
It is suitable for ITE (Commercial) and Medical applications.
