| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

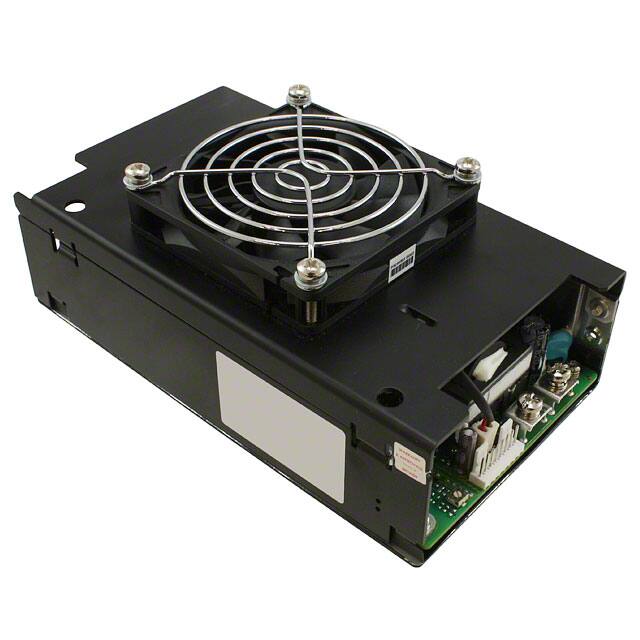

The TDK Corporation U7Y0098 is an enclosed AC/DC converter with a power rating of 400W and a single 12V output. It operates with a wide input voltage range of 85 to 264 VAC, offering universal input capability.
Key features include adjustable output, remote on/off functionality, and a standby output. The converter boasts an efficiency of 91% and delivers a maximum output current of 33.3A. Its isolation voltage is rated at 4kV.
Designed for chassis mounting, the U7Y0098 has dimensions of 177.8mm x 100.0mm x 71.2mm. It is suitable for applications in ITE (Commercial) and Medical sectors. The operating temperature range is from 0°C to 70°C, with derating applied.
This series, CFE400M, is certified by CE, indicating compliance with relevant European safety standards. The RoHS status is listed as RoHS3 Compliant, and it is REACH Unaffected.
The TDK Corporation U7Y0098 has a single output voltage of 12V.
The U7Y0098 accepts an input voltage range of 85 to 264 VAC.
The U7Y0098 has a maximum power output of 400W.
The operating temperature range for the U7Y0098 is 0°C to 70°C, with derating applied.
Key features include adjustable output, remote on/off, standby output, and universal input.
