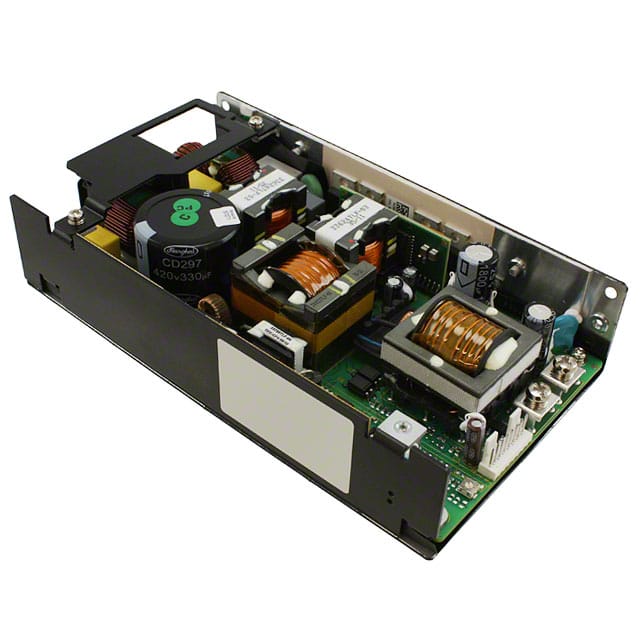

U7Y0054 The TDK Corporation U7Y0054 is a 300W AC/DC converter with an output current of 12.5A and 94% efficiency. It features an Open Frame design and Chassis Mount type.
Mfr Part #:

U7Y0054

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation U7Y0054 is a 300W AC/DC converter with an output current of 12.5A and 94% efficiency. It features an Open Frame design and Chassis Mount type.
Stock on Request

U7Y0054 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Medical Grade
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
Width
View Similar Products (0)

U7Y0054 Description

Short technical summary and product information.

This TDK Corporation U7Y0054 is an AC/DC converter with a power output of 300W, capable of 400W with forced air. It delivers 12.5A of current and boasts an efficiency of 94%. The converter operates with an input voltage range suitable for universal use and features adjustable output, remote on/off, and a standby output.



Designed as an Open Frame unit, it is intended for Chassis Mount installation. Its dimensions are 177.8mm in length, 100.0mm in width, and 40.0mm in height. The operating temperature range is from 0°C to 60°C, with derating applied.



This AC/DC converter is suitable for ITE (Commercial) and Medical applications. It has received CE certification. The isolation voltage is rated at 4 kV.

U7Y0054 Quick Information

Product Type: AC DC Converter
Canonical Name: TDK Corporation U7Y0054 AC/DC Converter
Subcategory: AC DC Converters

U7Y0054 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

U7Y0054 Features

  • 300W AC/DC converter with 12.5A output.
  • High 94% efficiency rating.
  • Open Frame design for easy integration.
  • Chassis Mount for secure installation.
  • Suitable for ITE and Medical applications.

U7Y0054 Applications

  • Ideal for commercial IT equipment.
  • Suitable for medical device power.
  • Used in systems requiring stable power.
  • Designed for universal input voltage.

U7Y0054 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

0°C to 60°C with derating.

What is the efficiency?

94%.

What is the isolation voltage?

4 kV.

What is the output current?

12.5 A.

What is the power rating?

300W (400W forced air).

What are the dimensions?

177.8mm x 100.0mm x 40.0mm.

What mounting type does it use?

Chassis Mount.
