| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,100 pcs
|
8100 pcs | On Request | 1 | On Request | On Request | 2019 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Lead Style | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel |

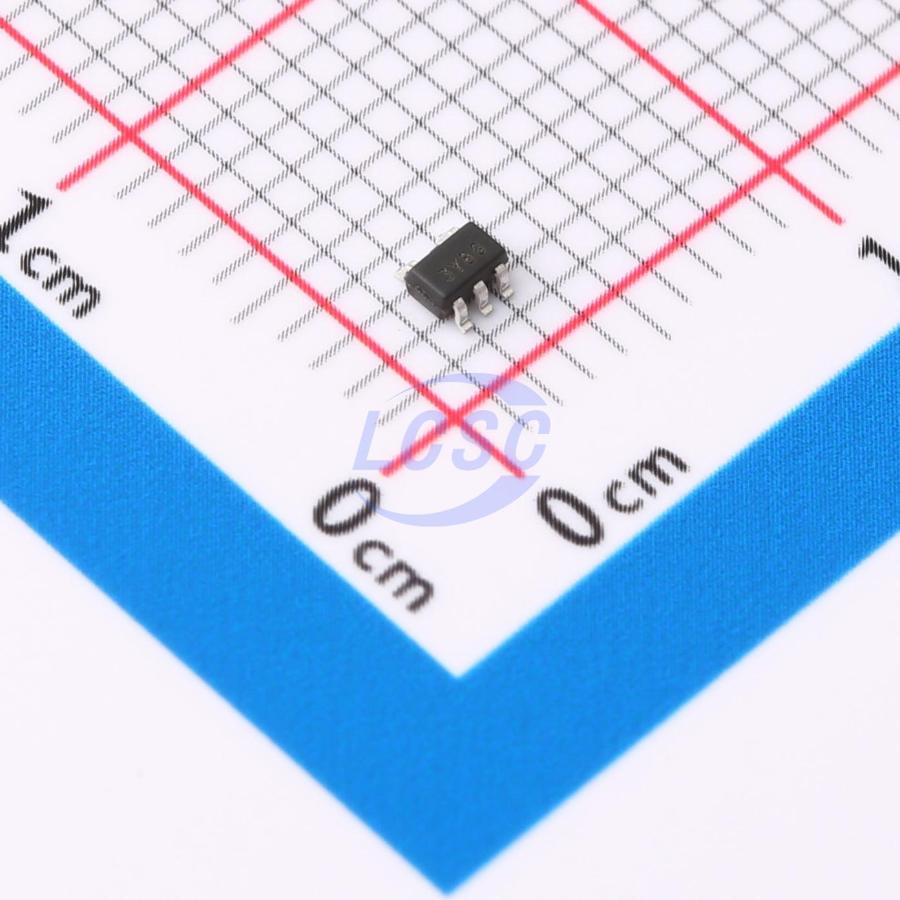

The U74LVC1G08G-AL5-R is a CMOS 2-input AND gate manufactured by Unisonic Technologies Co., Ltd. (UTC). It provides the logical function Y=A*B and is designed to operate within a supply voltage range of 1.65V to 5.5V.
Key features include a low power current consumption with a maximum quiescent current of 10μA and an output drive capability of ±24mA at 3.3V. The device accepts input voltages up to 5.5V and includes a power-down protective circuit.
This AND gate is suitable for applications requiring reliable logic operations across a wide temperature range, from -40°C to 85°C. It is supplied in a compact SOT-353 package, suitable for surface mounting.
The U74LVC1G08G-AL5-R is designed for general-purpose digital logic applications where a compact and efficient AND gate is needed.
The U74LVC1G08G-AL5-R operates with a supply voltage range of 1.65V to 5.5V.
The operating temperature range for the U74LVC1G08G-AL5-R is -40°C to 85°C.
The U74LVC1G08G-AL5-R is supplied in a SOT-353 package.
The quiescent supply current (IQ) is a maximum of 10μA.
The output drive is ±24mA at VCC=3.3V.
