| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

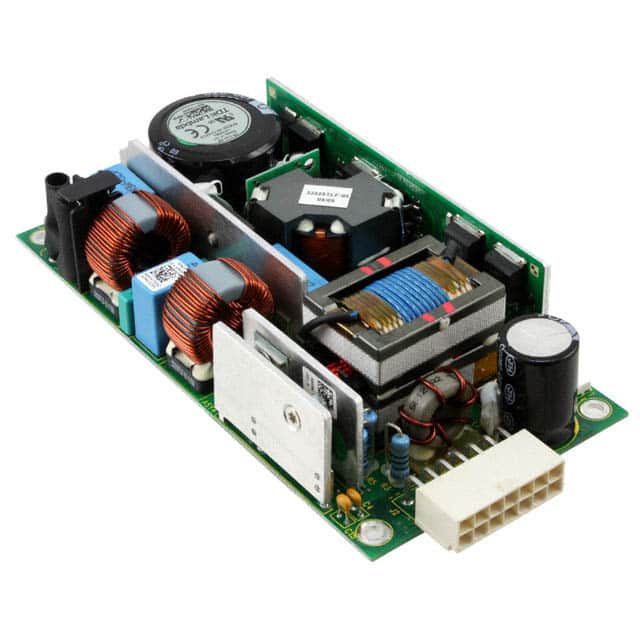

The TDK Corporation U4Y002H is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers 400W of power with a 12V output and a current rating of 33.3A.
Key electrical specifications include a high efficiency of 90% and a universal input capability, along with features like PFC and a standby output. The operating temperature range is 0°C to 70°C with derating.
Mechanically, this converter is designed for chassis mounting and has dimensions of 152.4mm in length, 76.2mm in width, and 34.0mm in height. It has undergone approval by the CE agency.
Environmental compliance includes RoHS3 compliance, an MSL rating of 1, and REACH unaffected status.
The U4Y002H provides a single output of 12V at 33.3A.
The U4Y002H is rated for 400W.
The efficiency is 90%.
The operating temperature range is 0°C to 70°C with derating.
It uses chassis mount.
It is CE approved.
