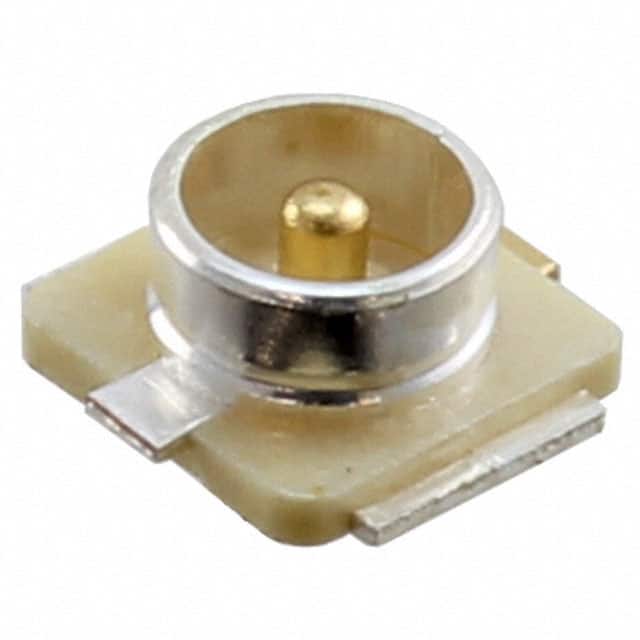

U.FL-R-SMT-1(01) Hirose U.FL-R-SMT-1(01) is a surface-mount U.FL coaxial receptacle with male pin contact, 50 Ohm impedance, and 8 GHz frequency rating.
Mfr Part #:

U.FL-R-SMT-1(01)

Available from 3 distributors
Mfr Name: Hirose Electric
Hirose Electric
Hirose U.FL-R-SMT-1(01) is a surface-mount U.FL coaxial receptacle with male pin contact, 50 Ohm impedance, and 8 GHz frequency rating.
✓ Total Stock: 1,281 pcs
$ Price Range: $0.99 - $1.72

U.FL-R-SMT-1(01) Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
800 pcs
On Request
800 pcs On Request 1 On Request On Request 18+22+ On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
470 pcs
On Request
470 pcs On Request 1 On Request On Request 1845 On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

U.FL-R-SMT-1(01) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Halogen Free
Housing Color
Impedance
Lead Style
Mounting Type
Number of Ports
Operating Temperature Range
Shield Termination
Storage Temperature
Tape & Reel
Weight
View Similar Products (0)

U.FL-R-SMT-1(01) Description

Short technical summary and product information.

The Hirose U.FL-R-SMT-1(01) is a surface-mount micro coaxial receptacle from the U.FL series, designed for space-constrained RF applications. It features a snap-on fastening mechanism and a mated height range of 1.9 mm to 2.4 mm, making it suitable for low-profile interconnections.



This receptacle offers a characteristic impedance of 50 Ohms and supports frequencies up to 8 GHz. The center contact is made of brass, and both contact and shield terminations are solder type. The housing is beige, and the part weighs only 15.7 mg, occupying a substrate area of 7.7 mm².



The U.FL-R-SMT-1(01) is packaged in tape and reel for automated pick-and-place assembly. It operates over a temperature range of -40°C to +105°C and is RoHS3 and halogen-free compliant.

U.FL-R-SMT-1(01) Quick Information

Product Type: Coaxial Connector (RF) Assembly
Series: U.FL
Canonical Name: Hirose Electric U.FL-R-SMT-1(01) U.FL Series SMT Receptacle, Male Pin, 50 Ohm
Subcategory: Receptacle

U.FL-R-SMT-1(01) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

U.FL-R-SMT-1(01) Estimated Pricing

Qty Low High
1+ $1.72 $1.72
10+ $1.46 $1.46
25+ $1.37 $1.37
50+ $1.30 $1.30
100+ $1.24 $1.24
300+ $1.15 $1.15
500+ $1.11 $1.11
1,000+ $1.05 $1.05
2,500+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

U.FL-R-SMT-1(01) Features

  • 50 Ohm characteristic impedance.
  • Supports frequencies up to 8 GHz.
  • Snap-on fastening for secure mating.
  • Surface mount with solder termination.
  • RoHS3 and halogen-free compliant.

U.FL-R-SMT-1(01) Applications

  • Used in wireless communication modules.
  • Ideal for GPS and Bluetooth antenna connections.
  • Suitable for IoT device RF interfaces.
  • Applied in portable electronic equipment.

U.FL-R-SMT-1(01) FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the U.FL-R-SMT-1(01)?

50 Ohms.

What is the maximum frequency of this connector?

8 GHz.

What is the mated height range?

1.9 mm to 2.4 mm.

What is the operating temperature range?

-40°C to +105°C.

What type of termination does this connector use?

Solder termination for both contact and shield.

Is this component RoHS compliant?

Yes, RoHS3 compliant and halogen-free.

What is the packaging type?

Tape and reel.
