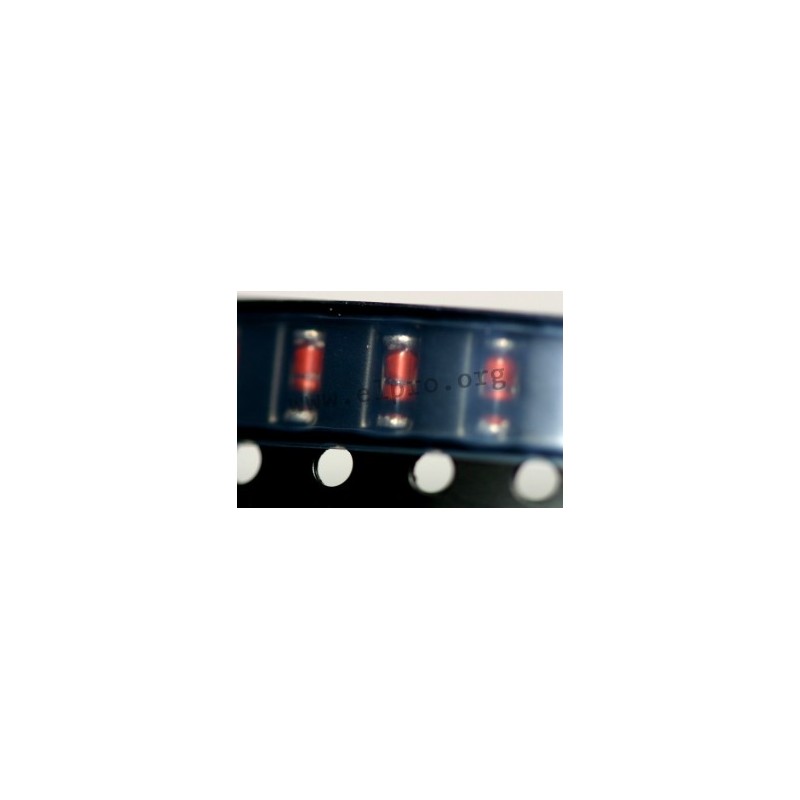

TZMC18 The Vishay TZMC18-GS08 is a Zener diode with an 18V Zener voltage and 0.5W power dissipation. It features a 5% tolerance and is housed in a Minimelf SMD package.
Mfr Part #:

TZMC18

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay TZMC18-GS08 is a Zener diode with an 18V Zener voltage and 0.5W power dissipation. It features a 5% tolerance and is housed in a Minimelf SMD package.
✓ Total Stock: 15 pcs
$ Price Range: $0.02

TZMC18 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TZMC18 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Mounting Type
Power Dissipation
SVHC Present
Tolerance
View Similar Products (0)

TZMC18 Description

Short technical summary and product information.

The Vishay TZMC18-GS08 is a Zener diode from the TZMC series, designed for surface mount applications. It offers a stable Zener voltage of 18V with a tight tolerance of 5%.



This diode has a power dissipation rating of 0.5W, making it suitable for various voltage regulation and reference applications. The Minimelf housing ensures compatibility with standard SMD assembly processes, and it is rated for solderability up to 260°C for 10 seconds.



Compliance with AEC-Q101 and UL94V-0 standards indicates its suitability for demanding environments. The TZMC series from Vishay provides reliable performance for discrete semiconductor applications.

TZMC18 Quick Information

Product Type: Zener Diode
Series: TZMC
Canonical Name: Vishay TZMC18-GS08 Zener Diode
Subcategory: Single Zener Diodes

TZMC18 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TZMC18 Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

TZMC18 Features

  • 18V Zener voltage rating.
  • 0.5W power dissipation capability.
  • 5% tolerance for precise regulation.
  • Minimelf SMD package for surface mounting.
  • AEC-Q101 compliant for reliability.

TZMC18 Applications

  • Used for voltage regulation circuits.
  • Suitable for voltage reference applications.
  • Ideal for SMD assembly processes.
  • Applicable in automotive environments.

TZMC18 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the Zener voltage of TZMC18?

The nominal Zener voltage is 18V.

What is the power dissipation of TZMC18?

The power dissipation is 0.5W.

What is the tolerance of the Zener voltage?

The tolerance is 5%.

What package is TZMC18 available in?

It is available in a Minimelf package.

What is the mounting type?

Surface mount (SMD).

What is the solderability rating?

Solderability is rated for a maximum of 260°C for 10 seconds.
