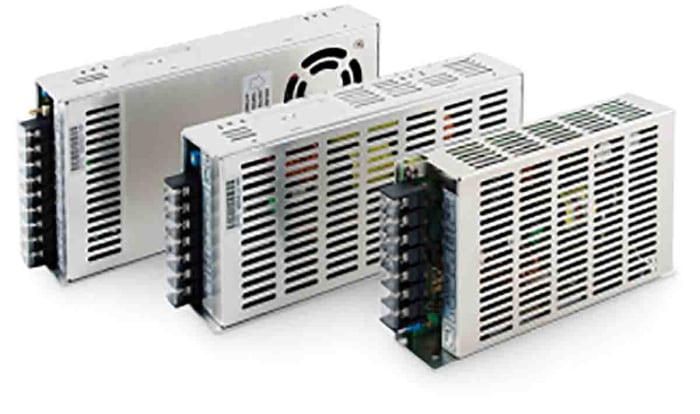

The Traco Power TZL 300-4812 is an enclosed DC DC converter designed for applications requiring high reliability and long lifetime. It features a wide 2:1 input range of 36-72 VDC and provides a stable 12 VDC output at up to 26.7 A, delivering a total of 300W of power.
This converter boasts an efficiency of 80% and offers an output voltage adjustment range of -20 to 10%. Key electrical specifications include an isolation voltage of 1.5 kV and a low ripple and noise level of 100mV Pk-Pk. It is designed with overload and short circuit protection, and features a compact metal case with screw terminal block for easy installation.
The operating temperature range is -10°C to 60°C with derating above 50°C. Its dimensions are 186.7mm in length, 115.1mm in width, and 50.0mm in height, making it suitable for chassis mounting in various ITE (Commercial) applications. The unit also includes input reverse polarity protection and no minimum load requirement.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal output voltage is 12 VDC.
The maximum output current is 26.7 A.
The input voltage range is 36-72 VDC.
The maximum output power is 300 W.
The efficiency is 80%.
The operating temperature range is -10°C to 60°C.
It is designed for chassis mounting.
