| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
283 pcs
|
283 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adjustment Type | |
| Capacitance Range | |
| Dielectric Material | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Voltage | |
| Width |

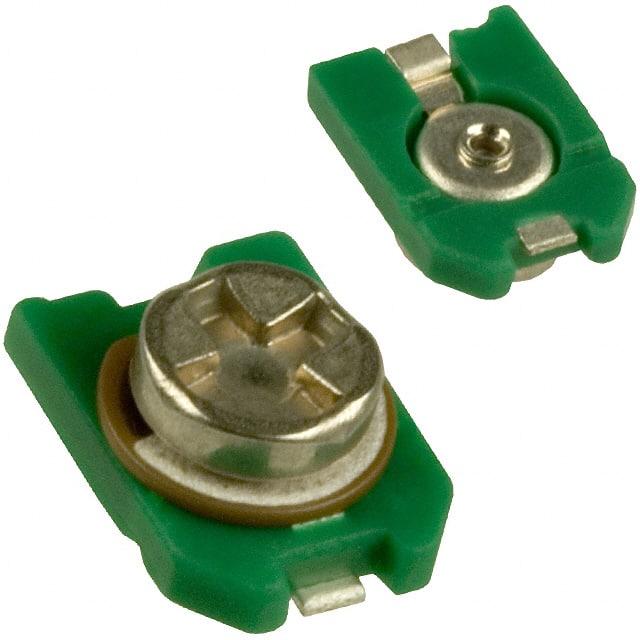

The Murata TZC3P300A310R00 is a general-purpose ceramic trimmer capacitor designed for surface mounting. It offers a capacitance range from 6.5pF to 30pF and is rated for a maximum operating voltage of 100V.
This component features a top adjustment mechanism and a ceramic dielectric material. Its dimensions are 4.50mm in length, 3.20mm in width, and 1.70mm in height. The operating temperature range is from -25°C to 85°C, with a Q factor of 300 at 1MHz.
The TZC3P300A310R00 is suitable for applications requiring precise capacitance adjustments within a compact form factor. Its surface mount design facilitates automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6.5pF to 30pF.
100V.
-25°C to +85°C.
Top adjustment.
300 at 1MHz.
4.5mm x 3.2mm x 1.7mm (length x width x height).
Surface mount.
