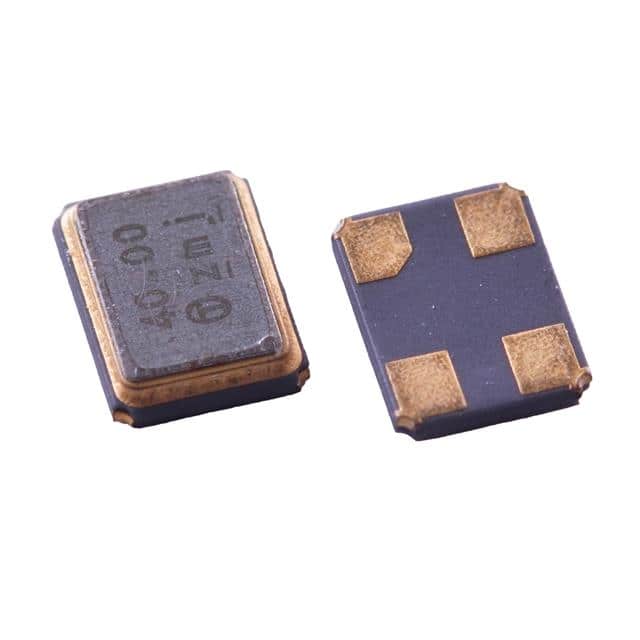

TZ0375A The TST TZ0375A is a 32 MHz crystal with a ±10ppm frequency tolerance and ±10ppm frequency stability. It features a 12pF load capacitance and a compact 3.2x2.5mm size.
Mfr Part #:

TZ0375A

Available from 1 distributors
Mfr Name: TST
TST
The TST TZ0375A is a 32 MHz crystal with a ±10ppm frequency tolerance and ±10ppm frequency stability. It features a 12pF load capacitance and a compact 3.2x2.5mm size.
✓ Total Stock: 413 pcs
$ Price Range: $0.66

TZ0375A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
413 pcs
On Request
413 pcs On Request 1 On Request On Request 09+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TZ0375A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESR (Equivalent Series Resistance)
Frequency
Frequency Stability
Frequency Tolerance
Height
Lead Style
Length
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Type
Width
View Similar Products (0)

TZ0375A Description

Short technical summary and product information.

The TST TZ0375A is a MHz Crystal designed for electronic circuits requiring precise frequency control. It operates at a fundamental frequency of 32 MHz with a tight frequency tolerance of ±10ppm and a frequency stability of ±10ppm. The crystal has a load capacitance of 12pF and an Equivalent Series Resistance (ESR) of 50 Ohms.



This component is housed in a 4-SMD, No Lead package, suitable for surface mounting. Its dimensions are 3.20mm in length and 2.50mm in width, with a seated height of 0.80mm. The operating temperature range is from -20°C to 70°C. The TZ0375A is RoHS3 Compliant and has an MSL rating of 1 Unlimited.

TZ0375A Quick Information

Product Type: Crystal
Canonical Name: TZ0375A Crystal
Subcategory: MHz Crystal

TZ0375A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TZ0375A Estimated Pricing

Qty Low High
1+ $0.66 $0.66

Estimated market price range - modelled values for guidance only, not live distributor offers.

TZ0375A Features

  • 32 MHz fundamental frequency crystal.
  • Tight frequency tolerance of ±10ppm.
  • Stable operation with ±10ppm frequency stability.
  • 12pF load capacitance for optimal performance.
  • Compact 3.2x2.5mm surface mount package.

TZ0375A Applications

  • Ideal for precise timing circuits.
  • Suitable for frequency generation.
  • Used in embedded systems.
  • Applicable in communication devices.
  • Component for portable electronics.

TZ0375A FAQs

6 frequently asked questions generated from this part’s specifications.
What is the frequency of the TZ0375A crystal?

32 MHz.

What is the frequency tolerance?

±10ppm.

What is the load capacitance?

12pF.

What is the operating temperature range?

-20°C to 70°C.

What is the package size?

3.20mm x 2.50mm x 0.80mm, 4-SMD no lead.

What is the ESR?

50 Ohms.
