| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
124,535 pcs
|
124535 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature Range | |
| Self Resonant Frequency | |
| Shielding | |
| Termination Style | |
| Test Frequency | |
| Tolerance | |
| Width |

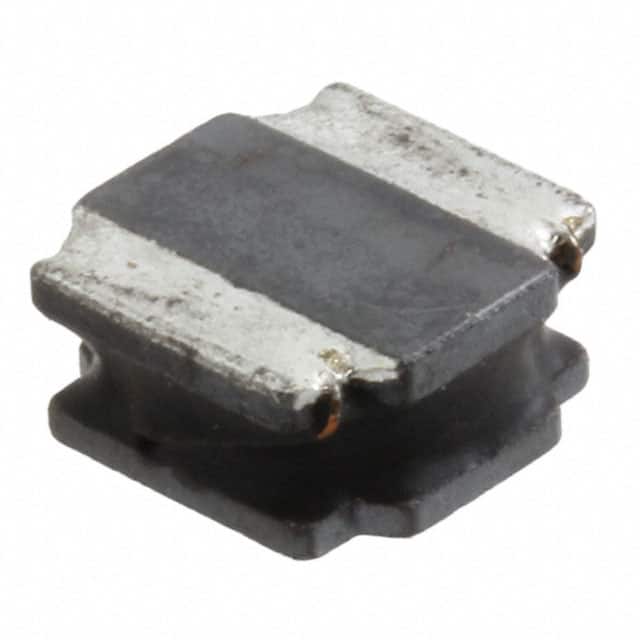

The Laird Connectivity TYS8040100M-10 is a low-profile, magnetic shielded SMT power inductor from the TYS8040 series. It features a ferrite core, offering low DCR and high efficiency for demanding applications.
This inductor provides a nominal inductance of 10µH with a tolerance of ±20%. It has a current rating of 3.3A and a DC resistance (DCR) of 29mOhm maximum. The operating temperature range is -40°C to 125°C, including self-heating.
Designed for surface mounting, the TYS8040100M-10 has dimensions of 8.00mm x 8.00mm x 4.20mm. Its shielded structure makes it suitable for DC-DC converters, power supplies, and various consumer electronics, industrial, and telecom devices.
Key features include magnetic shielding, low profile, and high saturation characteristics, contributing to improved performance, reliability, and power efficiency in compact designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 10 µH.
The current rating is 3.3 A.
The maximum DC resistance is 29 mOhm.
The operating temperature range is -40°C to 125°C.
This inductor is available in a Reel package.
The mounting type is Surface Mount.
The self-resonant frequency is 15 MHz.
