| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,539 pcs
|
3539 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Channels per Circuit | |
| Data Rate | |
| ESD Protection | |
| Features | |
| Latch-up Performance | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay | |
| Supplier Device Package | |
| Supplier Package | |
| Topology | |
| Translator Type | |
| Voltage |
The Texas Instruments TXU0104RUTR is a versatile 4-bit, fixed-direction, unidirectional voltage level translator designed for seamless voltage translation between different logic levels. It supports a wide input and output voltage range from 1.1V to 5.5V, making it suitable for diverse applications.
This translator boasts a high data rate capability of up to 200Mbps, ensuring efficient signal transmission. Key features include Schmitt-trigger inputs, which enhance noise immunity and allow for slower input signal transitions, and 3-state outputs for flexible bus interfacing. The device also incorporates integrated pulldown resistors on inputs to prevent floating channels and offers features like partial power-down (Ioff), VCC disconnect, and VCC isolation for power management.

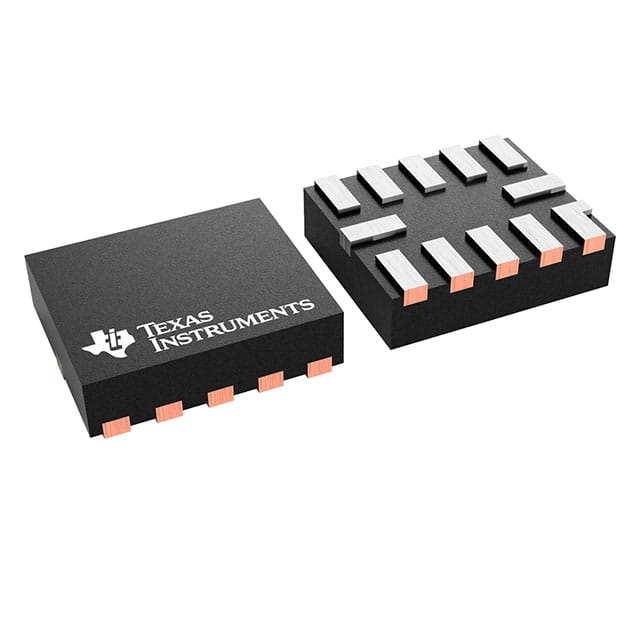

Packaged in a compact 12-UQFN (1.7x2 mm) surface-mount form factor, the TXU0104RUTR is designed for space-constrained applications. It operates within an industrial temperature range of -40°C to 125°C, providing reliable performance in demanding environments. Its high drive strength and low power consumption make it an efficient choice for GPIO expansion and level-shifting tasks in embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TXU0104RUTR operates with supply voltage from 1.1V to 5.5V on both input and output sides.
The TXU0104RUTR is available in a 12-UQFN (1.7x2mm) surface-mount package.
The operating temperature range is -40°C to 125°C.
The TXU0104RUTR has 4 channels.
The device supports data rates up to 200Mbps.
Typical propagation delay is 8ns.
