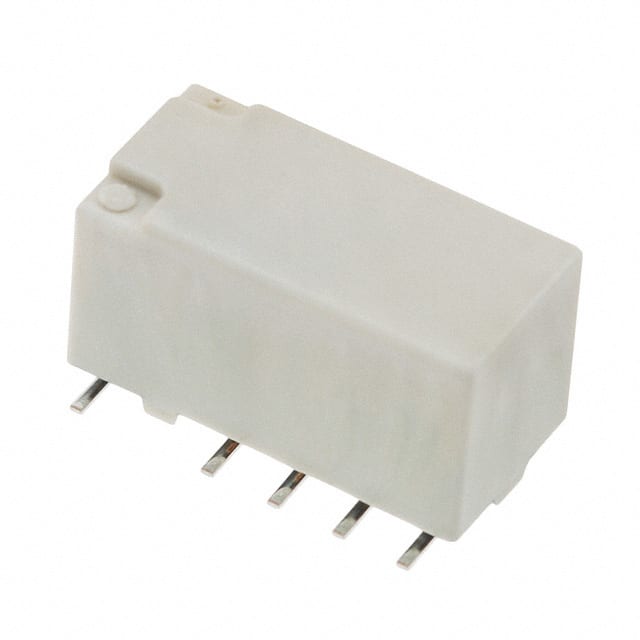

TXS2SA-L2-3V-Z The Panasonic Electronic Components TXS2SA-L2-3V-Z is a general purpose relay with a DPDT contact form. It features a 1A contact rating at 30VDC and a 3VDC coil voltage.
Mfr Part #:

TXS2SA-L2-3V-Z

Available from 2 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic Electronic Components TXS2SA-L2-3V-Z is a general purpose relay with a DPDT contact form. It features a 1A contact rating at 30VDC and a 3VDC coil voltage.
✓ Total Stock: 3,983 pcs
$ Price Range: $2.00

TXS2SA-L2-3V-Z Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
3,933 pcs
On Request
3933 pcs On Request 1 On Request On Request 15+ On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TXS2SA-L2-3V-Z Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Resistance
Coil Type
Coil Voltage
Contact Form
Contact Material
Contact Rating (Current)
Insertion Loss
Isolation
Mounting Type
Must Operate Voltage
Operate Time
Operating Temperature
Power Consumption
Relay Type
Release Time
Seal Rating
Switching Voltage
Termination Style
View Similar Products (0)

TXS2SA-L2-3V-Z Description

Short technical summary and product information.

The Panasonic Electronic Components TXS2SA-L2-3V-Z is a general purpose relay designed for signal applications. It features a DPDT (2 Form C) contact configuration, capable of switching up to 1A at 30VDC. The relay operates with a 3VDC coil voltage and has a coil current of 23.3 mA.



This relay is designed for surface mounting with a gull wing termination style, making it suitable for automated assembly processes. It has an operate and release time of 5 ms. The operating temperature range is -40°C to 70°C.



Key electrical characteristics include a maximum switching current of 1A, a switching voltage of up to 110VDC, and a coil resistance of 129 Ohms. The relay also offers 20 dB isolation and 0.8 dB insertion loss.



Packaged in Cut Tape, MouseReel, or Reel, this relay is suitable for various PCB designs requiring compact and reliable switching solutions.

TXS2SA-L2-3V-Z Quick Information

Product Type: General Purpose Relay
Canonical Name: Panasonic Electronic Components TXS2SA-L2-3V-Z General Purpose Relay
Subcategory: Signal Relay

TXS2SA-L2-3V-Z Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TXS2SA-L2-3V-Z Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

TXS2SA-L2-3V-Z Features

  • DPDT contact form for versatile switching.
  • 1A contact rating at 30VDC.
  • 3VDC coil voltage for low power operation.
  • Surface mount with gull wing termination.
  • Latching, dual coil design.

TXS2SA-L2-3V-Z Applications

  • Used in signal switching circuits
  • Suitable for low-voltage control applications
  • Ideal for automation and industrial controls
  • Applicable in electronic testing equipment

TXS2SA-L2-3V-Z FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the relay?

The relay operates with a coil voltage of 3 VDC.

What is the contact rating of the relay?

The contact rating is 1 A at 30 VDC.

What is the maximum switching voltage?

The maximum switching voltage is 110 VDC.

What is the operating temperature range?

The relay operates from -40°C to 70°C.

What mounting style does the relay use?

It uses surface mount with gull wing terminations.

Is the relay RoHS compliant?

RoHS3 compliance status is unverified.
