TXS02324RUKR The Texas Instruments TXS02324RUKR is a specialized interface IC designed for SIM card applications. It functions as a dual-supply 2:1 multiplexer and translator with dedicated dual LDO regulators.
Mfr Part #:

TXS02324RUKR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TXS02324RUKR is a specialized interface IC designed for SIM card applications. It functions as a dual-supply 2:1 multiplexer and translator with dedicated dual LDO regulators.
✓ Total Stock: 63,267 pcs
$ Price Range: $0.61

TXS02324RUKR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
60,267 pcs
On Request
60267 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 11+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TXS02324RUKR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Data Rate (Max)
Features
Input Voltage
Interface
Mounting Type
Operating Temperature
Output Voltage
Supplier Device Package
Topology
Voltage
View Similar Products (0)

TXS02324RUKR Description

Short technical summary and product information.

The TXS02324RUKR from Texas Instruments is a specialized interface IC designed to extend a single SIM/UICC interface to support two SIMs/UICCs, commonly used in mobile handset applications. This device complies with ISO/IEC Smart-Card Interface requirements and GSM/3G mobile standards.



Key electrical specifications include a 1.7V to 3.3V VDDIO range for the level translator and a 2.3V to 5.5V input voltage range for the LDO regulators. The LDOs offer selectable output voltages of 1.8V or 2.95V. The level translator supports a maximum data rate of 10 Mbps and features auto-direction control. Communication and configuration are managed via an I2C interface.

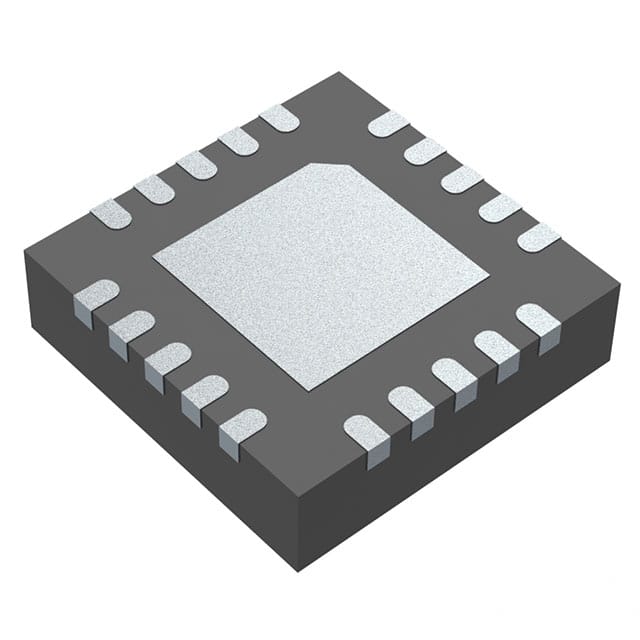

This IC is housed in a 20-WQFN (3x3 mm) package suitable for surface mounting. It includes robust ESD protection, exceeding 2000V for the Human-Body Model and 1000V for the Charged-Device Model. The operating temperature range is -40°C to 85°C.



The TXS02324RUKR integrates features like an edge rate accelerator and dual low-dropout regulators, making it a comprehensive solution for SIM card interfacing in portable devices.

TXS02324RUKR Quick Information

Product Type: Interface IC
Canonical Name: Dual-Supply 2:1 SIM Card Multiplexer/Translator With Slot Dedicated Dual LDO
Subcategory: SIM Card Multiplexer/Translator

TXS02324RUKR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TXS02324RUKR Estimated Pricing

Qty Low High
1+ $0.61 $0.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

TXS02324RUKR Features

  • Dual-supply SIM card multiplexer/translator
  • Integrated dual LDO regulators
  • Supports 1.7V to 3.3V VDDIO
  • 10 Mbps maximum data rate
  • Surface mount 20-WQFN package

TXS02324RUKR Applications

  • Mobile handset SIM card interfacing
  • Extends single SIM interface
  • Complies with smart card standards
  • Supports GSM and 3G mobile standards

TXS02324RUKR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the TXS02324RUKR?

The operating voltage range for the level translator is 1.7V to 3.3V, and the LDO regulator input voltage range is 2.3V to 5.5V.

What is the maximum data rate supported by the TXS02324RUKR?

The maximum data rate supported is 10 Mbps.

What package type is the TXS02324RUKR available in?

The TXS02324RUKR is available in a 20-WQFN (3x3 mm) package with an exposed pad, suitable for surface mounting.

What is the operating temperature range for this IC?

The operating temperature range is -40°C to 85°C.

Does the TXS02324RUKR have RoHS compliance?

Yes, the RoHS status is compliant.

What is the Moisture Sensitivity Level (MSL) for the TXS02324RUKR?

The Moisture Sensitivity Level is 1.
