The TXS0108ENMER from Texas Instruments is an 8-bit, non-inverting, bidirectional voltage-level translator. It is suitable for open-drain and push-pull applications, offering a maximum data rate of 110Mbps for push-pull and 1.2Mbps for open-drain.
This device operates with a VCCA supply voltage range of 1.4V to 3.6V and a VCCB supply voltage range of 1.65V to 5.5V, with VCCA required to be less than or equal to VCCB. It features auto-direction control, eliminating the need for a direction-control signal. The TXS0108ENMER includes edge rate acceleration and output enable features.
It is available in a compact 20-NFBGA package with dimensions of 2.5mm x 3mm, making it suitable for space-constrained designs. The operating temperature range is -40°C to 85°C. The device also provides robust ESD protection, exceeding JESD 22 standards for the A port and IEC 61000-4-2 for the B port, along with latch-up performance exceeding 100mA per JESD 78, class II.
Applications include GPIO, I2C, JTAG, MDIO, SDIO, SMBus, SPI, and UART interfaces where voltage level translation is required between different logic families.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.83 | $0.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The A port operates from 1.4V to 3.6V and the B port operates from 1.65V to 5.5V.

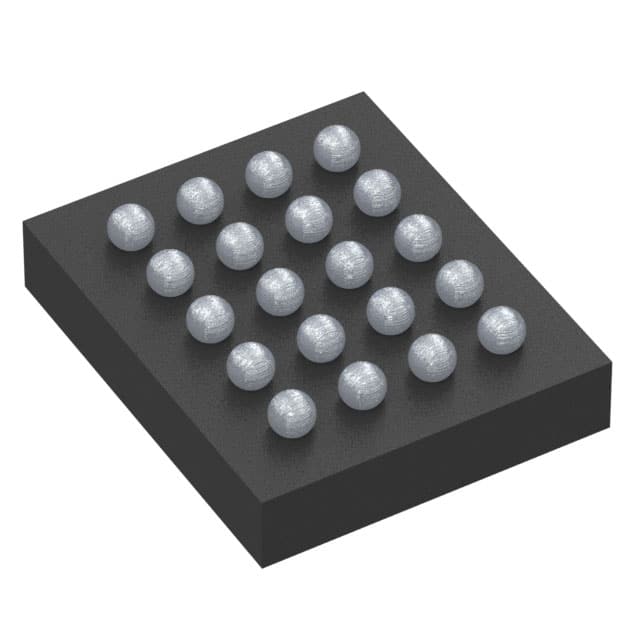

It is available in a 20-WFBGA (20-NFBGA 2.5x3mm) package.
It operates from -40°C to 125°C.
It supports data rates up to 110Mbps.
The propagation delay is 4.8ns.
It has 8 bidirectional channels.
It provides ±2kV HBM and ±150V MM on the A port, and ±8kV contact and ±6kV air discharge on the B port.
